CompactPCI 4U Chassis

CompactPCI 4U Chassis

产品型号:
P-484283-H-CP

详细规格及用途描述

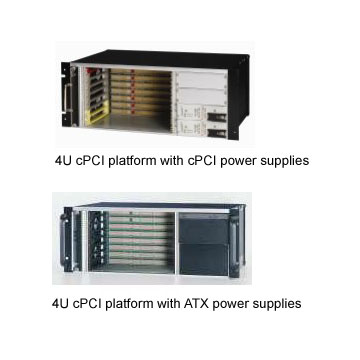

4U CompactPCI Platforms, horzontal type, with 6U 8slots backplane, cPCI or ATX power supplies.

Specifications:
Enclosure Material: aluminum with black painted for lighter weight and increased EMC/EMI protection.) Dimensions: 4U (H) x 84T (W) x 285 mm (D) Front cage: 8-slot, 6U x 160mm Rear I/O: 8-slot, 6U x 80mm Backplane 6U 8 slots. PICMG2.0R3.0 or PICMG2.16 compliance. CompactPCI power supplies Power supply: 250W/ 300W cPCI type 47pin sockets for 1/2/3/4 cPCI power supplies ATX Power supplies 250W or 380W ATX power supplies Options: Device holders for HDD, CD ROM, slim CD ROM, 5.25" or 3.5" devices. Filler panels: 6U4HP, 6U8HP, 3U8HP, 3U16HP, etc.

Main Products:
4U 21-slot, CompactPCI 2U chassis, CompactPCI 4U chassis, CompactPCI ejector handles, 9U CompactPCI Chassis, 3U, 4U, 6U, 9U subrack, CompactPCI front panels, Ejector handles, VME Front panels, VME ejector handles, VME PCB holder
