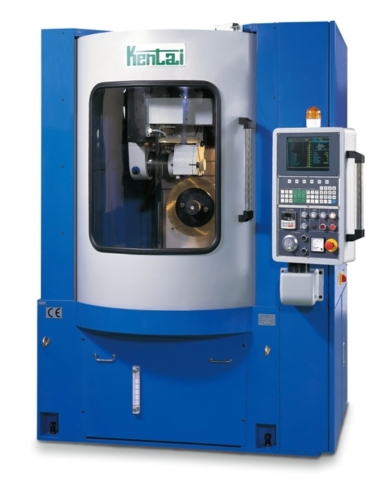

CNC 4 Axis Saw Grinding Machine
CNC 4 Axis Saw Grinding Machine

产品型号:KNC-710 原产地:台湾

详细规格及用途描述

Instruction / Model: KNC - 710
Saw blade diameter: Ø45 ~ Ø710 mm
Pitch range: 24 mm ( max. )
Grinding teeth limit: 10 ~ 998 Teeth
Thickness of saw blade: 6 mm ( max. )
Wheel diameter: Ø150 mm
Wheel inner diameter: Ø32 mm
Wheel motor: 2.2 kw
High pressure coolant device: 9 kg/cm2 - 75 l/min
Pneumatic pressure requirement: 4 - 6 kg/cm2
Total electronic power: 7.5 kw
Gross weight of packing: 2,500 kgs
Gross weight of packing: 2,800 kgs
Dimension (W x H x D): 1730 x 2150 x 2450 mm

* The specifications subject to change without prior notice.
