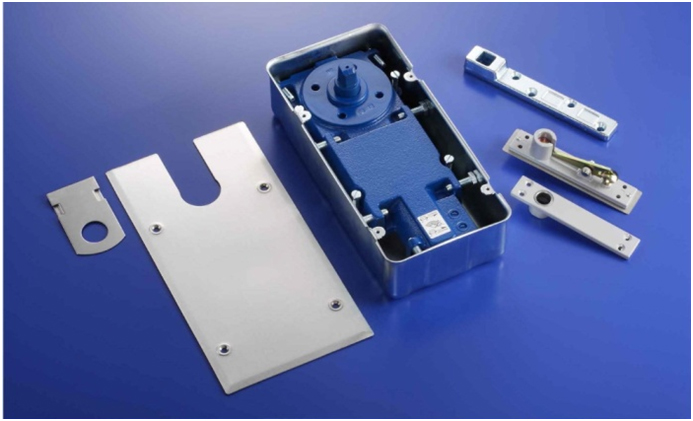

Universal Floor Spring

Universal Floor Spring
Is designed for special application door with 180 opening angle.
Feature & Specification :
*Length 277mm x Width 130mm x Depth 70mm
* Adjustable Closing & Latching Speed.
*Maximum door open angle 180°
*Mechanical Hold Open at 90°
* Exchangeable Spindle Pivot optional.
*Cam system for easy door open.
* Max. Door Weight 100 kgs.
* Suitable for single & double action doors.

Technical Data
Closing Size: Light Duty
Closing Force: 20 Nm
Max. Door Width: 900 mm

Closing Size: Medium Duty
Closing Force: 25 Nm
Max. Door Width: 1000mm

Closing Size: Heavy Duty
Closing Force: 33Nm
Max. Door Width: 1100mm

Warranty ━ 2 Years
