Universal Floor Spring
- 产品型号:
- JPF-710 Series
- 原产地:
- 台湾
详细规格及用途描述
JPF-710 Series

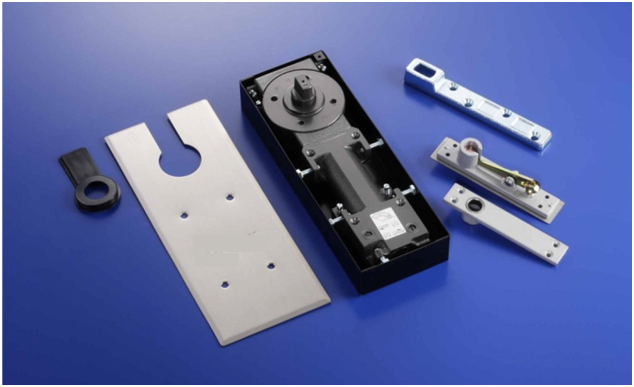

Universal Floor Spring
is designed for light traffic door, compact design & low profile cement case suits for thin-slab applications where
floor depth is limited.
Feature & Specification :
* Floor recess : 274mm x 97mm x 40mm
* Adjustable Closing & Latching Speed.
*Maximum door open angle 130°
*Mechanical Hold Open at 90°
* Adjustable Tope Pivot is available.
*Cam system for easy door open.
* Max. Door Weight 80 kgs.
* Suitable for single & double action doors.
Technical Data
*Available for Light Duty only
Closing Size: Light Duty
Closing Force: 13 ~ 18 Nm
Max. Door Width: 900 mm
Warranty ━ 2 Years
