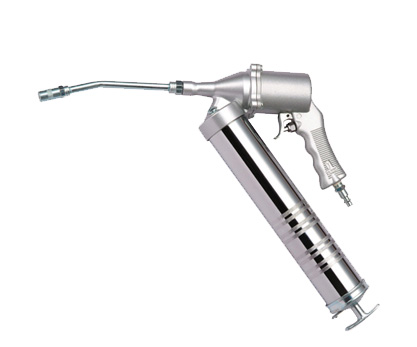

Gun-Type Pneumatic Grease Gun
Gun-Type Pneumatic Grease Gun Hot

产品型号:HT1201-012 原产地:台湾 材质:Tube: Steel, Head: Zinc Alloy 颜色:Final detail to be provided on formal quotation sheet

详细规格及用途描述

Features

Press trigger for fully automatic and continuous flow of grease oil
Heavy-duty spring for prime retention
Exclusive air piston design assures consistent priming
Bigger capacity to save time in changing oils

Description

Ergonomically-designed to allow easier access for users to in all kinds of situations
Suitable for both professional and home use
Ideal for constructional vehicle, machine, automobiles, farm and garden equipments, recreation vehicles etc
Standard 'round plug' for grease loading. Optional: Air Vent valve and Filler Plug available

Specification

Standard Spout Equipped:
HA-403A Metallic Bend Spout
Finish:
Gun Head: Oven Painting
Container Tube: Chrome Plated
Pressure Range:
Input: 60-150 psi (4.2-10.3 bar) Compressed Air Supplied
Output: 2400-6000 psi (165-412 bar)
Working Pressure:
Input: Recommended Air Source 90 psi (6.2 bar)
Output: 3600 psi (250 bar)
Volume:
3.5cc/per sec appro
Loading Ways:
Cartridge, Dispenser, Bulk
Capacity:
Cartridge Loading: 16 o.z.
Bulk Loading: 500c.c

Additional spare accessories with functions available:

HA-401 Series
Heavy-duty and high performance flexible nylon hose
Attached with grease coupler and ball check
Steel reinforced high pressure nylon hose and heavy-duty chassis
Working Pressure: 4,500 psi
Burst Pressure: 10,000 psi

HAW-401 Series
Heavy-duty high performance flexible nylon hose
Attached with grease coupler and ball check
Strategically placed coil spring provides non-slip, push-pull grip and prevents accidental “Kinking” which could cause hose ruptures
Working Pressure: 4,500 psi
Burst Pressure: 10,000 psi

HA-404 Series
Working Pressure: 2,150 psi
HA-404A / Legth: 115mm
HA-404B / Legth: 250mm
HA-404C / Legth: 450mm

HA-403A HA403-B
Attached with grease coupler and ball check
Working Pressure: 4,500 psi
Burst Pressure: 10,000 psi
HA-403A-Metallic Bend Spout
HA-403B-Metallic Straight Spout

HA-405H HA-405R HA-406H
Working Pressure: 4,500 psi
Burst Pressure: 10,000 psi
HA-405H: 4 jaws
HA-405R: 4 jaws
HA-406H: 3 jaws
(refer to Accessories Available pic)
