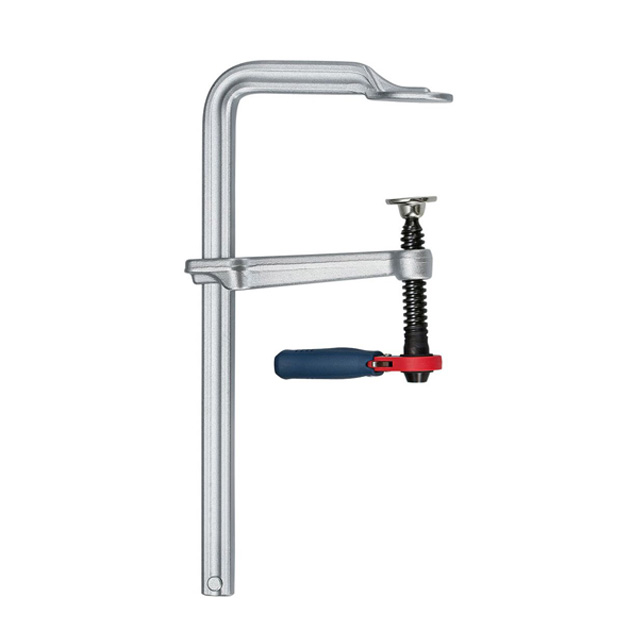

Innovative Ratchet Lever Clamp

Feature

Upgraded 2-way ratchet handle design allows for working in tight spaces
Innovative patented ratchet design saves half the operating time, perfect tool for craftsmen
Increasing 20% clamping force when compared to T-handle clamps
Strong quick-release clamp suitable for general and heavy-duty jobs

Description

Clamping pressure up from 670kg to 1200kg for all applications
Two PP pads (top and bottom) available for Scratch-resistant purpose in different applications
Made in Taiwan for longer durability and lifetime

Specification






Item NO.
Span x Depth
Rail
Weight
Pressure
Pack


　
mm
mm
kg
kg
pcs


HT2300-043A
300 x 140
25.0 x 12.0
1.98
670
10


HT2300-043B
300 X 120
1.89
750



HT2300-043C
400 X 120
2.1


HT2300-043D
500 X 120
2.31


HT2300-043E
600 X 120
2.52


HT2300-043F
800 X 120
27.0 X 13.0
3.41
1000
6



HT2300-043G
1000 X 120
3.89


HT2300-043H
1250 X 120
4.52
4



HT2300-043I
1500 X 120
5.04


HT2300-043J
250 X 120
30.0 x 15.0
2.63
1200
10


HT2300-043K
300 X 120
2.84


HT2300-043L
400 X 120
3.19
6


HT2300-043M
500 X 120
3.41


HT2300-043N
600 X 120
3.88


HT2300-043O
800 X 120
4.38


HT2300-043P
1000 X 120
4.99


HT2300-043Q
1250 X 120
5.78
4


HT2300-043R
1500 X 120
6.58


Material of Head : Hot forged head
Material of Bar : Cold drawn profiled steel with temper and harden process for high pressure strength
Surface Treatment : Nickel Chrome Plating
Material of Handle : TPR
Material of Pad : PP
The Span of Clamping Force : 150mm
