高速精密车床
高速精密车床

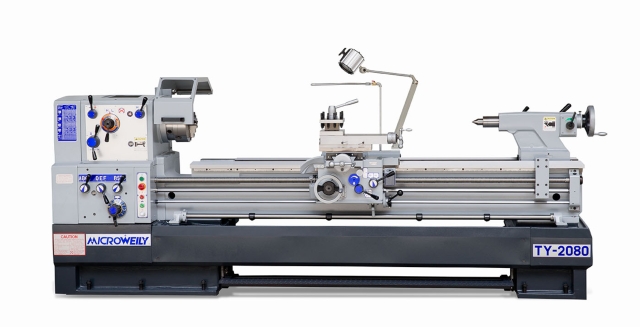

产品型号:TY-2080 原产地:台湾

详细规格及用途描述

20/22/26 SERIES
TY-2040/TY-2060/TY-2080/TY-20100/TY-20120/TY-20160
TY-2240/TY-2260/TY-2280/TY-22100/TY-22120/TY-22160
TY-2640/TY-2660/TY-2680/TY-26100/TY-26120/TY-26160
-----------------------------------------------------------------

CAPACITY & DIMENSIONS
Swing
Over bed........................510mm(20")/
.........................560mm(22")/
.........................660mm(26")
Over cross slide..............330mm(13")
..............360mm(14-1/8")/
..............460mm(18-1/16")
In gap diameter...............680mm(26-3/8")/
...............745mm(29-3/8")/
...............845mm(33-1/4")
Length of gap in front of face plate
...............180mm(7-1/16")
(W/D1- 8)/
200mm(7-7/8")
(W/A1- 8)/
165mm(6-1/2")
(W/D1- 11)/
185mm(7-1/3")
(W/A1- 11)
Center
Height.............................255mm(10")/
280mm(11")/
330mm(13")
Center admits between....1000mm(40")
(TY- 2040, TY- 2240, TY- 2640)
....1530mm(60-1/4")
(TY- 2060, TY- 2260, TY- 2660)
....2040mm(80-5/16")
(TY- 2080, TY- 2280, TY- 2680)
....2550mm(100-3/8")
(TY- 20100, TY- 22100, TY- 26100)
....3060mm(120-1/2")
(TY- 20120, TY- 22120, TY- 26120)
....4060mm(160")
(TY- 20160, TY- 22160, TY- 26160)
Bed
Width..............................400mm(16-1/8")
Motor for
Main spindle...................10HP,3ph
(Standard)/
15HP,3ph (Optional)
Coolant pump.................1/8HP,3ph

HEADSTOCK
Spindle
Bore................................80mm(3-1/8")
(Standard)/
105mm(4-1/8")
For 22"/26"
(Optional)
Nose................................D1- 8" ISO or
A1- 8" ISO
(Standard)/
D1- 11" ISO or
A1- 11" ISO
(Optional)
Taper in nose/sleeve........No.7/No.5
(Standard)
No.8/No.5
(Optional)
Speeds number................12
Range..............................20~1550 r.p.m.
(Standard)
15~1200 r.p.m.
For 22"/26"
(Optional)

CARRIAGE & COMPOUND
Cross slide travel.............320mm(12-1/2")
Compound rest travel......255mm(10")
Leadscrew diameter & thread
...........38mm(1-1/2")/
6mm P or 4 T.P.I.

TAILSTOCK
Quill
Diameter..........................75mm(2-15/16")
Travel..............................160mm(6-5/16")
Taper...............................No.5 Morse
