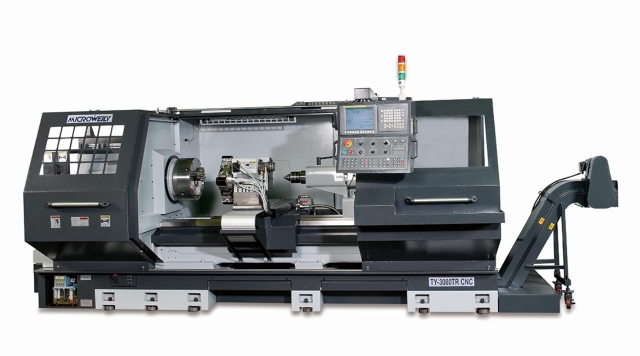

TY-3080TR CNC
原产地:
台湾

详细规格及用途描述

TY-22/26/30 CNC
TY-22/26/30 CNC HIGH PRECISION LATHE
-----------------------------------------------------------------

CAPACITY & DIMENSIONS
Swing
Over bed....................560mm(22")/
660mm(26")/
760mm(30")
Over cross slide..........280mm(11")/
380mm(15")/
480mm(19")
In gap diameter(Optional).....
.....760mm(30")/
860mm(33-3/4")/
960mm(37-3/4")
Length of gap in spindle nose....
.....420mm(16-1/2")
Center
Height.........................280mm(11")/
330mm(13")/
380mm(15")
Admits between.........1000mm(39-3/8")/
1500mm(59")/
2000mm(78-3/4")/
3000mm(118")/
4000mm(157-1/2")
Bed
Width..........................460mm(18")
Length........................2500mm(98-3/8")/
3000mm(118")/
3500mm(137-3/4")/
4500mm(177")/
5500mm(216-1/2")
Height.........................400mm(15-3/4")
Motor for main spindle......
.......15HP For spindle
bore 86mm
(20HP,Optional),
20HP For spindle
bore 105mm,
25HP For 30CNC
For coolant pump.......1/2HP

HEADSTOCK
Spindle bore...............86mm(3-3/8")
(MODEL 22A/22B/26A/26B)
..............105mm(4-1/4")
(MODEL 22C/22D/26C/26D)
..............170mm(6-5/8")
(MODEL 30)
Spindle nose No.........D1- 8
(MODEL 22A/26A)
.........A2- 8
(MODEL 22B/26B)
.........D1- 11
(MODEL 22C/26C)
.........A2- 11
(MODEL 22D/26D)
.........A2- 11
(MODEL 30)
Taper in nose/sleeve........
.........MT#6
Spindle speed.............15-1500 r.p.m.
(MODEL 22A/26A)
..............20- 2000 r.p.m.
(MODEL 22B/26B)
..............12- 1200 r.p.m.
(MODEL 22C/26C)
..............16- 1600 r.p.m.
(MODEL 22D/26D)
..............10- 1000 r.p.m.
(MODEL 30)
Longitudinal travel (Z- axis).......
..............1000mm(39-3/8")/
1500mm(59")/
2000mm(78-3/4")/
3000mm(118")/
4000mm(157-1/2")
Cross slide travel (X- axis)....
..............500mm(19-5/8")
Cross slide dimension....
..............1000mm(39-3/8")X
258mm(10-1/8")

Built-in rotating tailstock spindle
(Optional)
Hydraulic tailstock (Optional)
Ballscrew diameter X- axis.....
..............32mm(1-1/4")
Z- axis.....
..............50mm(2")
Servo motor for X- axis..........
..............AC 1.5KW
Z- axis..........
..............AC 2.0KW
Rapid traverse X- axis..........
..............10m/min.
Z- axis..........
..............10m/min.

TAILSTOCK
Quill
Diameter......................90mm(3-1/2")
Travel..........................200mm(7-7/8")
Taper...........................MT#5
