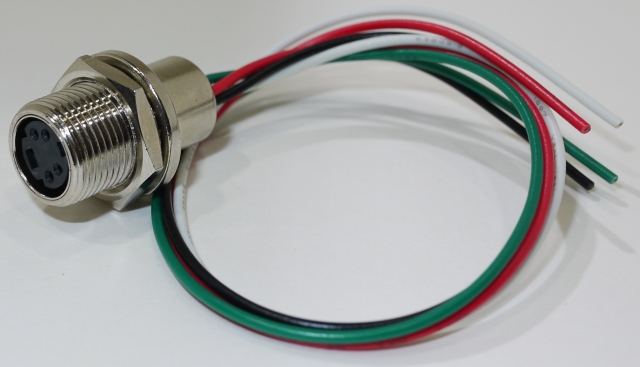

Mini DIN 4 Bulkhead Jack / Leads, Front Mount

Mini DIN 4 Bulkhead Jack / Leads, Front Mount

产品型号:
MA011LB4D

详细规格及用途描述

These exclusive adapters feature a versatile design ideal for panel mounting Mini DIN connectors. Each unit includes 8-inch, 26 AWG wire leads, giving users the flexibility to hardwire connections or terminate with the connector of their choice. The D-flat mounting surface prevents the adapter from rotating once installed and is compatible with virtually any panel thickness. Available in Mini DIN 4, 6, and 8 configurations (commonly used for S-video, PS/2, and Macintosh systems).

Features:
Available in Mini DIN 4, 6, and 8 formats with 8" long, 26 AWG wire leads
Gold-plated contacts ensure consistent, long-lasting connections
Unterminated leads support hardwiring or custom connector termination
Front-panel mountable Mini DIN jacks with user-configurable wiring
UL 94V-0 rated connector insulator meets flame-retardant safety standards
