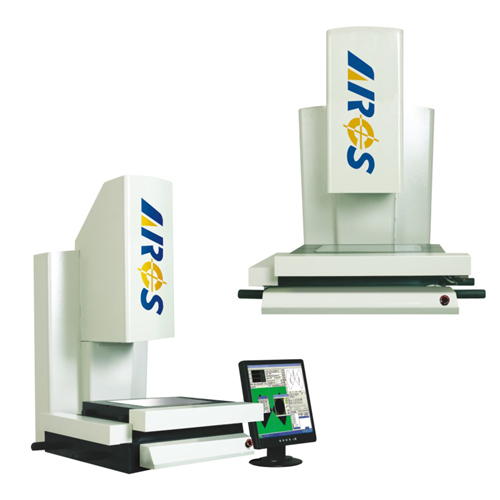

CNC 非接触式影像量测系统
CNC 非接触式影像量测系统

产品型号:KAM SERIES 原产地:台湾 颜色:White

详细规格及用途描述

Technology Features of KAM Series
* Video system: High Resolution & High Accuracy CCD / High Speed Video Capture Card
* Magnification: 0.7x~4.5x (17.5x~112.5x) Standard zoom lens
(Optional:Co-axial Lens)
Optional: 0.5x lens (For Standard Lens)
2x lens (For Standard or Co-axial Lens)
5x lens (For Co-axial Lens)
10x lens (For Co-axial Lens)
* Illumination: Adjustable surface and contour illumination
(High Brightness Ring Illumination)
(Optional:26 Channel Multi-Sections Illumination)
* Linear scale: 0.0005mm on X, Y, Z -axis
* Length Accuracy: ± (3+L/200) μm on X,Y-axis
* Motor: X,Y,Z Servo Motor
* Motor operation: Mouse program (Optional: Joystick)
* Repeatability: 0.003mm on X, Y-axis
* Base: Precision granite table
* Power supply: 1~, AC220~230V, 50/60Hz
* Support software: SI-901
(Optional:SI-901A - Import Excellon File SI-901B - with Touch Probe Function)
