Power inverters
- 產品型號:
- 100S-12A/E, 100S-24A/E
- 原產地:
- 台灣
詳細規格及用途描述

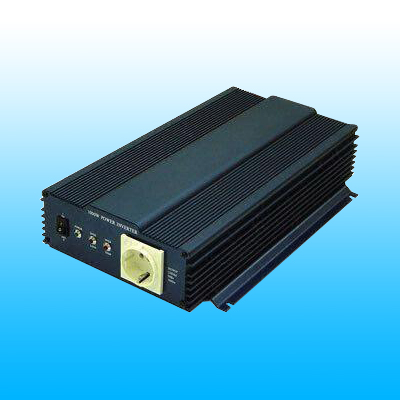

100S-12A/E, 100S-24A/E Power Inverter with 1,000W Continuous Output Power and Pure Sine wave Output Wave Form
Rated input voltage: 12 to 24V DC
Output power:
Continuous: 1,000W
15 minutes: 1,200W
Surge: 2,000W
Maximum input current: 160 and 80A
Output voltage: 115V AC, ± 3% and 230V AC, ± 3%
Output frequency: 50 or 60Hz to be specified
Output wave form: pure sine wave
Total harmonic distortion: <3%
Idle current 115V AC: <0.8A and <0.6A
Consumption 230V AC: <1.2A and <0.8A
Input voltage range: 10.7 to 16.5V; 21.4 to 33V
Low voltage alarm: 10.7 and 21.4V
Low voltage shutdown: 10 and 20V
Efficiency: up to 85%
Dimensions: 395 x 236 x 83mm
Weight: 4kg
Option remote control: yes
Option GFCI: yes
