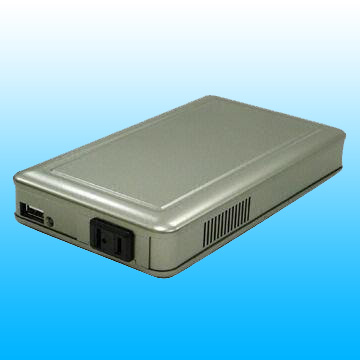

Pure sine wave inverters
Pure sine wave inverters

產品型號:WT-12S-12A,WT-12S-24A

詳細規格及用途描述

Key Specifications/Special Features:


Specifications:
Output power/continuous: 120W
Output voltage: 120V ±3%
Output frequency: 60Hz ±1%
Output wave form: pure sine wave
Total harmonic distortion: <3%
Input voltage: 13 and 24V DC
Maximum efficiency: 88%
No load current: <0.5 and 0.3A
Input current maximum: 12 and 7.5A
Low battery shutdown: 10 and 20V
USB power: 5V ±0.1V/500mA
Fan: temperature control
Dimensions (L x W x H): 190 x 105 x 30mm
UL-458 (ETL)
Protection:
Input low voltage
Input over voltage
Over temperature
Overload
Short circuit




Main Export Markets:
Asia
Central/South America
Eastern Europe
North America
Western Europe
