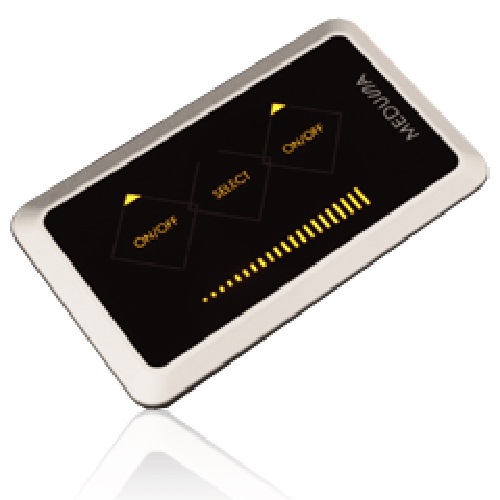

DIMMER CONTROLLER

DIMMER CONTROLLER

產品型號:
CD301-S

詳細規格及用途描述

- MCU-based controller to ensure reliability & stability.
- Capacitive touch Input to give sleek & gleaming surface touching experience.
- Lighting scene and group can be configured by either adjustable DIP switch or personal computer system (DALI scene & grouping control gear version).
- Preconfigured design to give the most convenience when Implementing DALI system.

Specifications
DALI Control Gear:DALI Grouping and Dimmable Control Gear
Touch Sensor Block:3 Sensor Block + 1 Slider bar
DALI Command Trigger:2 DALI Grouping address within Dimmer 1 DALI Scene address
DALI Power Supply:DC-15V
Power Consumption:11mA
Mounted:In-Wall

Protocol & Interface
Protocol Standard:IEC-62386
Addressing DALI Ballast No.:63
Communication Bus:DALI
Connector:RJ-45 LAN Jack x 1
Lighting Scene and Grouping Mapping:Via Adjustable DIP Switch x 2
Accessories:Quick Install Guide
