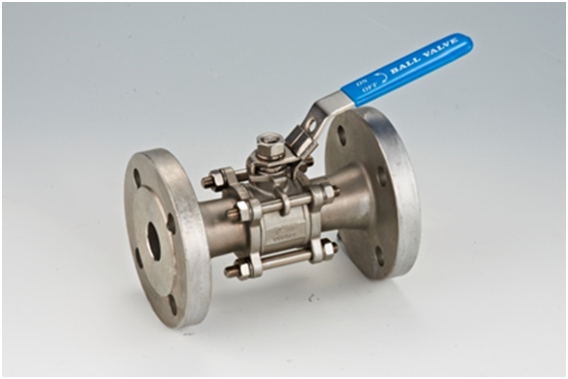

3 pcs. Flange Ball Valve
- 產品型號:
- JP-611
- 原產地:
- 台灣
詳細規格及用途描述
Size：1/2”~4”
Materia:
AISI SS316、SS304
ASTM A351、CF8M 、CF8
JIS SCS14、SCS13
DIN 1.4408、1.4308
ASTM A216-WCB
Features：
Full port
Investment casting bady and cap
Face to face:
ANSI B16.10
DIN 3202
Flange end:
ANSI B16.5 CLASS 150LBS
DIN 2633 PN16/PN40
Seat ptfe(rptfe)
Blow-out proof stem
Max working pressure：
1/2”~2”1000psi(63bar)
2-1/2”~4”800 psi(40bar)
Locking device
Temperature：-4ﾟf ~356ﾟf(-20ﾟc~180ﾟc)
