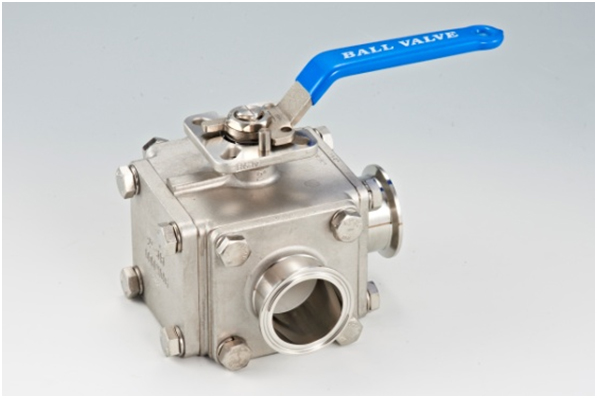

3 Way Sanitary Ball Valve
- 產品型號:
- JP-321
- 原產地:
- 台灣
詳細規格及用途描述
WITH DIRECT MOUNTING PADISO 5211
SIZE：1/2”~4”
STAINLESS STEEL
MATERIAL：
AISI SS316、316L ASTM A351 CF8M、CF8M
DIN EN10213 1.4408、1.4308
FEATURES：
DIRECT MOUNTING PADISO 5211
DESIGNED FOR SQUARE STEM
ISO 5211 MOUNTING PAD
INVESTMENT CASTING BADY AND CAP
FULL CAVITY FILLED SEATS
BLOW-OUT PROOF STEM
CLAMP END：3A STANDARD；BUTT WELD END OTHER SMS,ISO,DIN
MAX WORKING PRESSURE：
1/2”~2” 1000 PSI(63BAR)
2-1/2”~4 800 PSI(40BAR)
T-PORT / L-PORT
LOCKING DEVICE
TEMPERATURE：-4ﾟF ~356ﾟF(-20ﾟC~180ﾟC)
INSIDE PORT RA≦0.4µm
