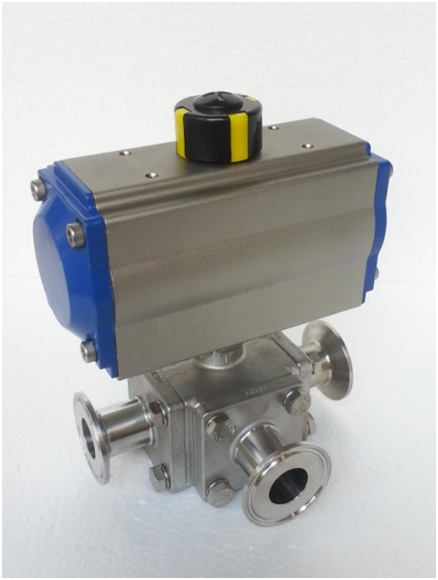

3 Way Sanitary Ball Valve With Pneumatic Actuator
3 Way Sanitary Ball Valve With Pneumatic Actuator

產品型號:JPF-BV322 原產地:台灣

詳細規格及用途描述

WITH ISO 5211 DIRECT MOUNTING PAD
SIZE:1/2”~4”
STAINLESS STEEL
MATERIAL:
AISI SS316、316L
ASTM A351 CF8M、CF3M
DIN EN10213 1.4408、1.4304

FEATURES:
INVESTMENT CASTING BADY AND CAP
FULL CAVITY FILLED SEATS
BLOW-OUT PROOF STEM
CLAMP END:3A STANDARD;BUTT WELD END OTHER SMS,ISO,DIN
MAX WORKING PRESSURE:
1/2”~2”1000 PSI(63BAR)
2-1/2”~4 800 PSI(40BAR)
TEMPERATURE:-4゚F ~356゚F(-20゚C~180゚C)
INSIDE PORT POLISH RA≦0.4µm

3 Way Sanitary Ball Valve With Pneumatic Actuator
