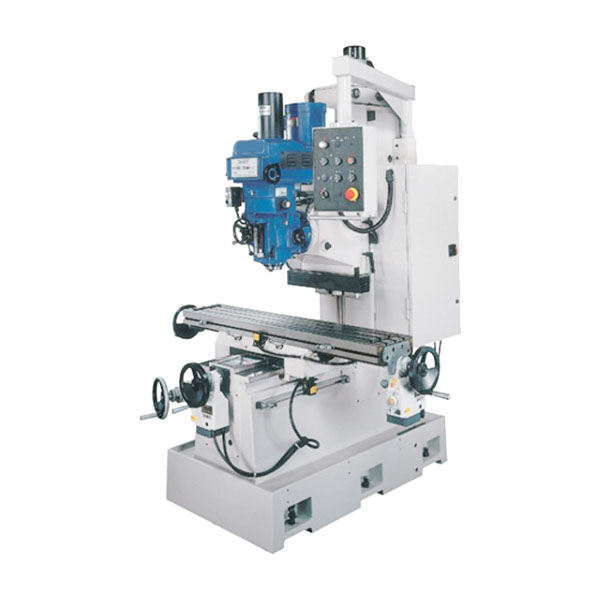

Bed Type NST40 Vertical Mill
Bed Type NST40 Vertical Mill Hot

產品型號:MW0800-039 原產地:台灣 材質:To be advised 顏色:Final detail to be provided on formal quotation sheet

詳細規格及用途描述

Features

Max. Table Load: 450 kgs
Longitudinal & cross manual movement
Spindle Taper N.S.T. 40
Vertical rapid traverse
Coolant Equipment

Description

Turret Type Variable Speed Head of vertical mill
Optional Functions of either X,Y Power Feed Unit or Air Power Draw Bar
Easy for easy operation and maintenance

Specification




ITEMS
MW0800-039


Table
Working Surface
1270x 254 mm


T Slot (WxNo.xPitch)
16x 3x 63


Travel
XxYxZ-Manual
775x 430x 550 mm


XxYxZ-Auto
700x 410x 540 mm


Feed
Long./Min.
-


Long. Rapid Traverse/Min.
-


Cross/Min.
-


Vertical/Min.
565 Rapid


Spindle
Spindle Nose
N.S.T. 40


Steps
Variable


Spindle Speed (RPM)
66-3165


Swiveling Angle
45 ° (R&L)


Quill Travel
127


Quill Feeds/Rev.
0.04/0.08/0.15


Spindle Nose to Table
155-695mm


Spindle Center to Column
450mm


Motor
Vertical Spindle
5HP-4P


Feed Long
-


Feed Cross
-


Feed Vertical
1/2HP-4P-1/5


Coolant Pump
1/8HP-2P


Size
Machine (LxWxH)
1870x 1485x 2330 mm


N.W.
2300Kgs




The product pictures are for your reference only: final spec & accessories based on formal quotation
