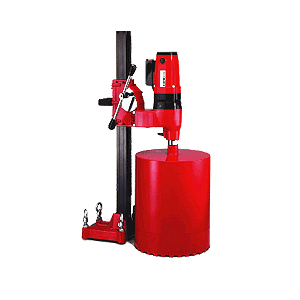

TF-14N
TF-14N

產品型號:TF-14N

詳細規格及用途描述

Features of the base

  • Standard 210Lx170Wx45T mm Aluminum die casting base is rugged, but lightweight and portable.
  • Base is reinforced for added rigidity & strength.
  • Four base leveling screws for precise drilling alignment, even on the rough surfaces.
  • Center mounting slot accommodates anchor bolts, or an optional vacuum assembly hol the machine securely on the working surface.
  • Minimum distance to centerline of the hole from wall is 45 mm.

Features of the column

  • Rigid steel column. 1,000 mm Lx55 mm square, bolts securely into the base.
  • Optional built-in jackscrew provides stability for ceiling or wall bracing.
  • Gear rack is screwed solidly to the front of the column.

Features of the drilling head

  • 2 speed gearbox for drilling the suitable material.
  • Precision rack and pinion gear system.
  • Single-lever" slip-through" feed handle.
  • Locking bolts on the carriage locks the head assembly in four positions.
  • Sealed motor switch with overload protection. * Standard maximum bit capacity of 355 mm.
  • Optional PRCD device.
