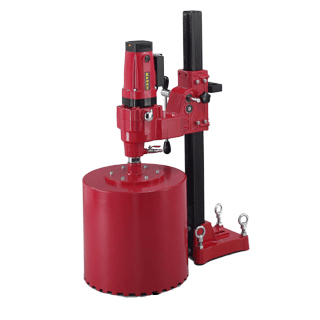

TF-16NE
TF-16NE

產品型號:TF-16NE

詳細規格及用途描述

Features of the base

  • Standard 165Lx125Wx30T mm Aluminum die casting base is rugged, but lightweight and portable.
  • Base is reinforced for added rigidity & strength.
  • Four base leveling screws for precise drilling alignment, even on the rough surfaces.
  • Center mounting slot accommodates anchor bolts, or an optional vacuum assembly the machine securely on the working surface.
  • Minimum distance to centerline of the hole from wall is 33 mm.

Features of the column

  • Rigid steel column. 700mm Lx40 mm square, bolts securely into the base.
  • Optional built-in jackscrew provides stability for ceiling or wall bracing.
  • Gear rack is welded solidly to the back of the column.

Features of the drilling head

  • Precision rack and pinion gear system.
  • Single-lever " slip-through" feed handle.
  • Whole piece design of the carriage & drilling motor with Aluminum die casting.
  • Sealed motor switch with overload protection.
  • Standard maximum bit capacity of 120mm.
  • Optional PRCD device.
