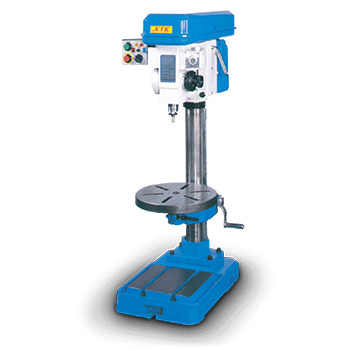

Pitch Gear Auto Tapping Machine
- 產品型號:
- T-50A
詳細規格及用途描述
| Model | T-50 | T-50A | T-50B | T-80 | T-80A | T-80B |
|---|---|---|---|---|---|---|
| Max. Tapping Capacity | M8 | M16 | ||||
| Spindle Taper | JT2 | MT3 | ||||
| Spindle Travel | 45mm | 65mm | ||||
| Spindle Speed 50HZ | 420.760.1340 | 155.285.515 | ||||
| Spindle Speed 60HZ | 500.900.1600 | 190.340.620 | ||||
| Swing | 360mm | 460mm | ||||
| VP-down Travel of the Head | 280mm | - | 280mm | 340mm | - | 340mm |
| Column Diameter | 52mm | 80mm | 52mm | 85mm | 102mm | 85mm |
| Table Diameter | 260x240mm | 320mm | 600x800x760mm | 280x250mm | 420mm | 800x1000x760mm |
| Base Diameter | 340x500mm | 330x510mm | - | 390x580mm | - | |
| Spindle to Table Distance | - | 350mm | - | - | 530mm | 470mm |
| Spindle to Base Distance | 380mm | 600mm | 380mm | 470mm | 840mm | - |
| Motor | 1HP | 2HP | ||||
| Overall Height | 930mm | 1100mm | 1720mm | 1130mm | 1500mm | 1920mm |
| Weight | 150kg | 200kg | 230kg | 320kg | 370kg | 420kg |
