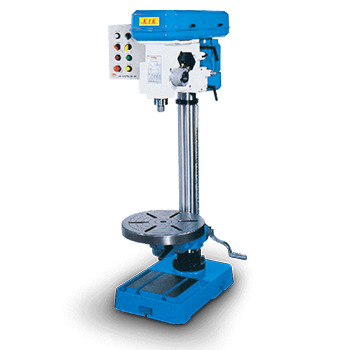

Pitch Gear Auto Tapping Machine

Pitch Gear Auto Tapping Machine

產品型號:
T-80A

詳細規格及用途描述

ModelT-50T-50AT-50BT-80T-80AT-80B
Max. Tapping CapacityM8M16
Spindle TaperJT2MT3
Spindle Travel45mm65mm
Spindle Speed 50HZ420.760.1340155.285.515
Spindle Speed 60HZ500.900.1600190.340.620
Swing360mm460mm
VP-down Travel of the Head280mm-280mm340mm-340mm
Column Diameter52mm80mm52mm85mm102mm85mm
Table Diameter260x240mm320mm600x800x760mm280x250mm420mm800x1000x760mm
Base Diameter 340x500mm330x510mm-390x580mm-
Spindle to Table Distance -350mm--530mm470mm
Spindle to Base Distance 380mm600mm380mm470mm840mm-
Motor1HP2HP
Overall Height930mm1100mm1720mm1130mm1500mm1920mm
Weight150kg200kg230kg320kg370kg420kg
