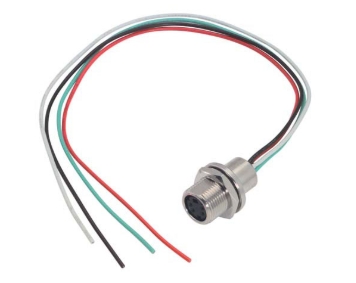

Mini DIN 4 Bulkhead Jack / Leads, Rear Mount

Mini DIN 4 Bulkhead Jack / Leads, Rear Mount

產品型號:
MA011LB14D

詳細規格及用途描述

These specially designed adapters are ideal for rear panel mounting of DIN and Mini DIN connectors. Each unit includes 8-inch, 26 AWG wire leads, giving users the flexibility to hardwire connections or terminate with a connector of their choice. The D-flat mounting design prevents the adapter from rotating and fits virtually any panel thickness. Connector options include Mini DIN 4, 6, and 8—commonly used for S-video, PS/2, and Macintosh applications.
Features:
Available in Mini DIN 4, 6, and 8 configurations with 8" 26 AWG wire leads
Gold-plated contacts ensure durable and reliable performance
Rear panel mount Mini DIN jacks with wire leads for custom termination
UL 94V-0 rated connector insulator meets flame resistance standards
Unterminated leads provide flexibility for hardwiring or using a preferred connector
