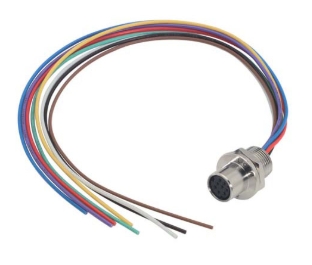

Mini DIN 8 Bulkhead Jack with Leads – Front Mount

Mini DIN 8 Bulkhead Jack with Leads – Front Mount

產品型號:
MA011LB8D

詳細規格及用途描述

These specially designed adapters are ideal for front panel mounting of Mini DIN connectors. Each unit features 8-inch, 26 AWG wire leads, giving users the flexibility to hardwire connections or attach their connector of choice. The D-flat mounting shape ensures the adapter stays securely in place and works with virtually any panel thickness. Available connector styles include Mini DIN 4, 6, and 8—commonly used for S-video, PS/2, and Macintosh systems.

Features:
Front panel mount Mini DIN jacks with 8" lead wires for user-defined termination
UL 94V-0 rated insulator meets flame resistance standards
Unterminated 26 AWG leads allow flexible connection options
Available in Mini DIN 4, 6, and 8 configurations
Gold-plated contacts ensure consistent, reliable connections with repeated use
