CNC BED TYPE MILLING M/C SERIES

CNC BED TYPE MILLING M/C SERIES

產品型號:

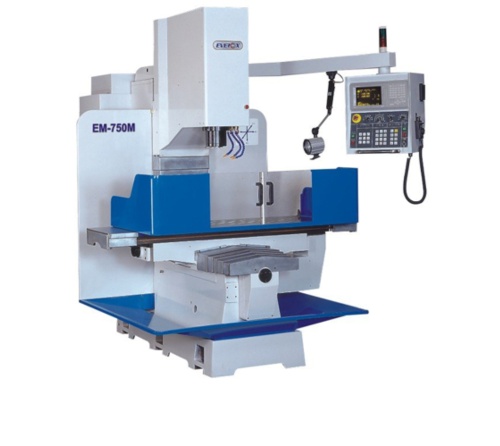

EM-750M

詳細規格及用途描述

WORKING TABLE
◎Table surface:305×1372
◎T slot:16×3 mm
◎Table loading:600 kgs
TRAVEL:
◎Longitudinal X axis:760mm
◎Cross Y axis:500mm
◎Vertical Z axis:520mm
◎Max. feedrate:1-3000mm/min
◎Rapid traverse rate:5000mm/min
SPINDLE:
◎Spindle taper:NT#40(BL,BH,X,H milling head)/BT#40(M milling head)
◎Spindle speed:(BL/BH)60-3600 (M)60-6000 rpm
◎Spindle travel:(BL)127/150(opt.)/(BH)140 mm
◎Spindle power:(BL/BH)5 (M)7.5/10(opt.)HP
◎X,Y,Z axis servo motor:0.85kw
◎Coolant pump motor:1/8HP
◎Dist. from spindle nose to table:(BL/BH)100-620(M)140-640mm
◎Spindle center to column surface:510mm

CNC BED TYPE MILLING M/C SERIES
