CNC BED TYPE MILLING M/C SERIES

CNC BED TYPE MILLING M/C SERIES

產品型號:

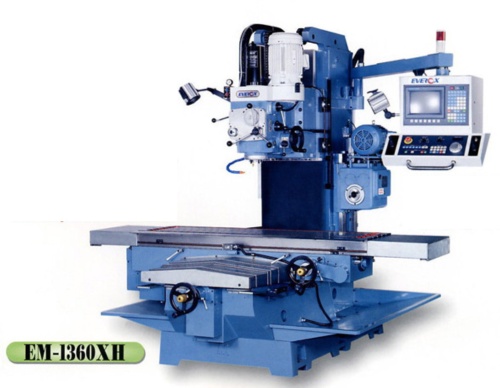

EM-1360XH

詳細規格及用途描述

WORKING TABLE:
◎Table surface:410×1702/ 510×1702(opt.)mm
◎T slot:18×4/ 18×5(opt.)mm
◎Table loading:1200kgs
TRAVEL:
◎Longitudinal X axis:1300mm
◎Cross Y axis:600mm
◎Vertical Z axis:600(700/800 opt.)mm
◎Max. feedrate:1-5000mm/min
◎Rapid traverse rate:10000mm/min
SPINDLE:
◎Spindle taper:NT#40(BL,BH,X,H milling head)/BT#40(M milling head)
◎Spindle speed:(X/BH)60-3600 (M)60-6000 rpm
◎Spindle travel:(BL)127/150(opt.)/(BH)140 mm
◎Spindle power:(BH)5/7.5(opt.) (X)5 (M)10/15(opt.)HP
◎X,Y,Z axis servo motor:1.3kw
◎Coolant pump motor:1/4HP
◎Dist. from spindle nose to table:
(BH)140-840 (940/1040 opt.)
(X、M)140-740(840/940 opt.)
◎Spindle center to column surface:(BH)650 (X)600 (M)660 mm

CNC BED TYPE MILLING M/C SERIES
