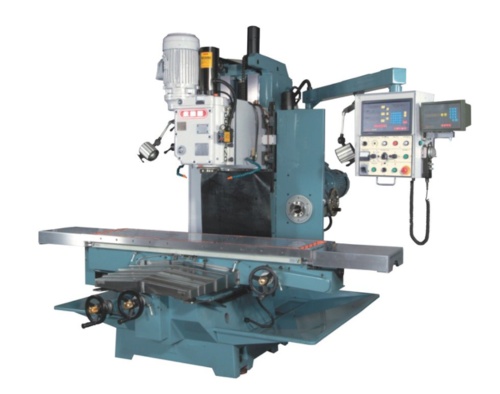

床台型強力銑床
- 產品型號:
- EM-1460G-H
詳細規格及用途描述
TRAVEL:
◎Longitudinal travel-x：1400mm
◎Cross travel-Y：600mm
◎Vertical travel-z：600/700/800/900mm
TABLE"
◎Table size：1702×410mm
◎T Solts：4×18×70mm
◎Table load：1200kgs
SPINDLE:
◎Spindle taper：NT50
◎Quill diameter：Ø 128.57mm
◎Spindle speed：60-Hz 90-615（6 steps）50-Hz 72-508
◎Distance from spindle end to eadle：720/820/920/1020mm
◎Distance from spindle center to column：610mm
MOTOR:
◎Main motor：10HP/4P
◎X, Y, Z axis servo motors : 4.5 Nm
◎Coolsnt pump : 1/8 HP
