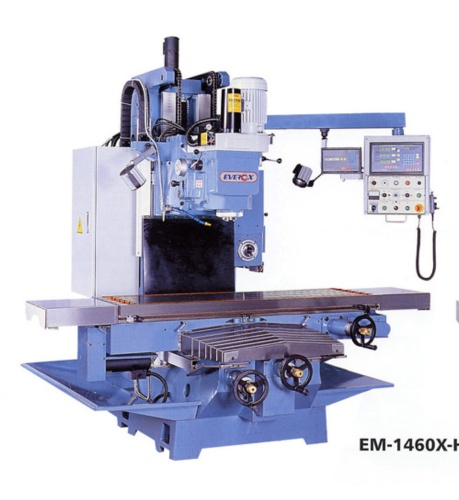

床台型強力銑床
- 產品型號:
- EM-1460X-H
詳細規格及用途描述
TRAVEL:
◎Longitudinal travel-x：1400mm
◎Cross travel-Y：600mm
◎Vertical travel-z：650/750/850/950mm
TABLE
◎Table size：1702×410mm
◎T Solts：4×18×70mm
◎Table load：1200kgs
◎Rapid feed：X,Y,Z axis 10－3000/4800mm/min
SPINDLE:
◎Spindle taper：NT40
◎Spindle speed：70-3500（16 steps）rpm/min
◎Distance from spindle end to eadle：750/850/950/1050mm
◎Distance from spindle center to column：650mm
MOTOR:
◎Main motor：5HP/4P
◎X,Y,Z axis servo motors：：4.5Nm
◎Coolant pump：1/8HP
