Multi-Jig Mesh Welding Machine

Multi-Jig Mesh Welding Machine

  • Country of Origin:Taiwan
  • Model:SA-1500DL-1

DETAIL SPECIFICATIONS

【Auto Cross Wire Feeder】
.Standard Accessory:Twin feeder with wire jigs.

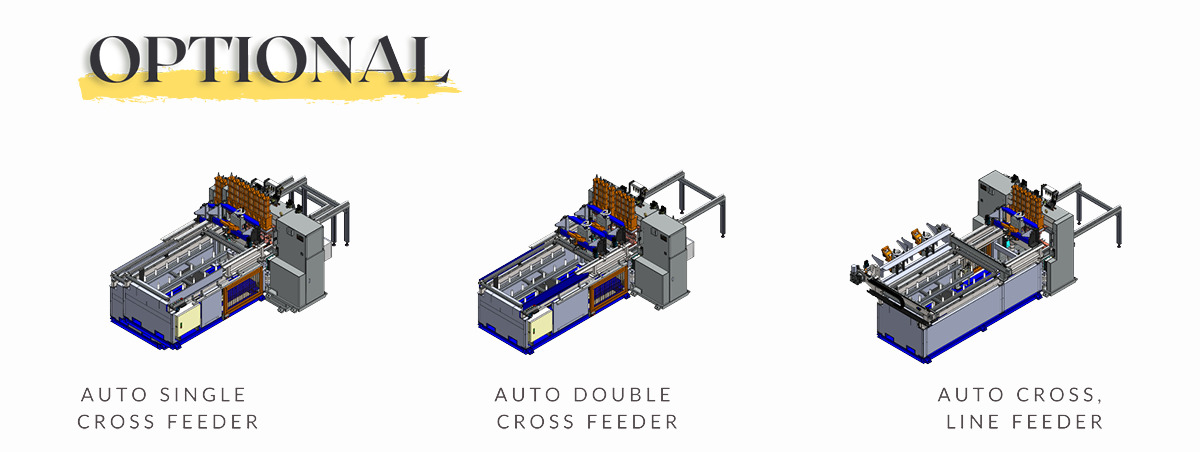

.Optional for loading system: 1~3 units.
.Feeding speed: 3 pcs/sec.

【Finger-touch Screen (HMI) Operation】
.Graphic Design.
.User-Friendly.

【Double Welder】
.Independent Double Welding System.
.(Each with 5 pcs welding cylinders.)
.Dual Lower Arch Structure.
.Independent control, driven by servo motor.
.Either one side or two sides operation with different workpiece.

【Increase production / Reduce Labor costs】
V.ertical way action (Multi-point at once).
.Reduce wire loading time.
.Suitable for mesh with large number of cross wires but few of line wires.

【Multi-function Welding method】
.Applicable to Double Wire Mesh with different wire thickness and length of mesh.
.Mesh with Accessory welding.
.Mesh Releasing Device- Mesh released from the jig, mesh unloaded manually.

【Specification】
.Mesh Max. specs:24”X48”(610mmX1219mm) X2pcs.
.Other sizes are available.

【Application】
.Double Wire Mesh, different wire thickness, various length, wire frame.
.EX: Wire Shelves, Wire Cages.
