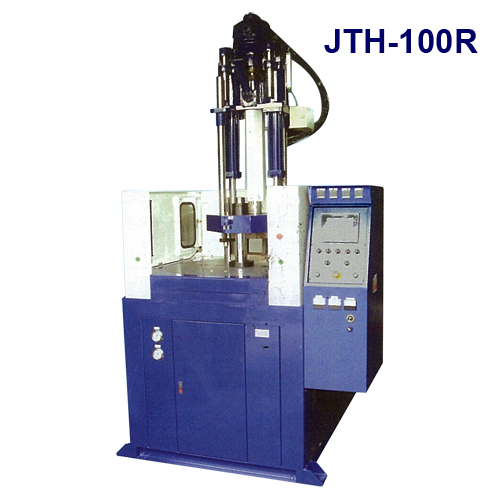

| MODEL | Unit | JT-100 |
| (SD) (R) |
Injection
Unit | Screw Diameter | MM | 40 | | 45 |
| Injection Pressure | Kg/CM² | 1889 | | 1492 |
| Theoretical Shot Volume | CM³ | 226 | | 286 |
| Max. Shot Weight(PS) | G / OZ | 208/7 | | 263/9 |
| Injection Rate | CM³ /Sec | 115 | | 146 |
| Injection Stroke | MM | 180 |
| Screw Rotation Speed Max | RPM | 0-195 |
Numbers of
Temperature Control | ZONE | 3 |
| Capacity of Hopper | L | | | |
Clamping
Unit | Clamping Force | T | 100 |
| Opening Force | T | 10 |
| Platen Size | MM | 740 x 510 |
| Distance Between Tie Bar | MM | 550 x 320 |
| Min. Mold Height | MM | 250 |
| Opening Stroke | MM | 250 |
| Max. Open Daylight | MM | 500 |
| Ejector Power | T | 3.5 |
| Ejector Stroke | MM | 80 | 40 | 80 |
Slider
Unit | Slider Size/Turn
Table Diameter | MM | 540x500 | | Ø1080 |
Numbers of
Mold Station | Sets | | | 2 |
| Max. Mold Dimension | MM | | | 400x350 |
Rotation Angle of
Turn Table | | | | 180° |
Hydraulic
Electricity
Unit | Max. Hydraulic Pressure | Kg/CM² | 140 |
| Pump Output | L/Min | 85 |
| Working Oil Consumption | L | 300 |
| Cooling Water Consumption | L | 1200-1600 |
| Hydraulic Motor Power | Kw/HP | 15/20 |
| Barrel Heater Capacity | KW | 6 |
| Total Electrical Consumption | KW | 21 |
| Others | Machine Weight | T | 4.6 x 5.4 |
| Machine Overall Dimensions | MM | 2.5 x 1.6x 3.5 |
| Shipping Gross Weight | T | 5 | | 5.8 |
Shipping Measurements
(L x W x H) | MM | 2.8 x 1.8 x 2.0 |
