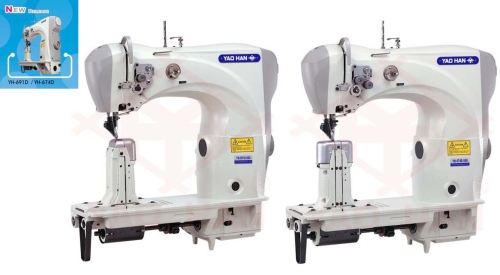

Direct-Drive High Speed Roller Postbed Lock Stitcher (1-Needle) / (2-Needle)

Direct-Drive High Speed Roller Postbed Lock Stitcher (1-Needle) / (2-Needle)

Model:

YH-691D / YH-674D

Country of Origin:

Taiwan


详细规格及用途描述
Products 1:

Direct-Drive High Speed Roller Postbed Lock Stitcher (Direct-Drive High Speed Roller Postbed Lock Stitcher (1-Needle))
Model : YH-691D-800
Driving motor directly.
Features :
* Increase Production capacity : Direct driving makes the lifting of needles easier, with low noise and vibration.
Easy in sewing and faster in production processes.
* Improve Quality : Servo motor equipped makes the stitching precise.
Needle strength of running through the leather also increase which makes the stitch even better.
* Reduce Cost : Low energy consumption by cutting down the waste during the transmission. Simply practical and economical.
* Needle gauge ( mm ) :2.0; 1.6; 2.4
* Applicable needle :DP x 5 #14 - 27
* Max. speed :2500 rpm
* Model :YH-691D-800
* No. of needle :1
* presser foot type Driven roller :(yes)
* feeding way :
- Needle :(yes)
- Low wheel :(yes)
* back tacking :
- Up driven roller :(yes)
- Auto :
* Thread trimming :
Available Options: Model: YH-691D-800
This product was added to our catalog on 2011-12-20.
Products 2:
Direct-Drive High Speed Roller Postbed Lock Stitcher (Direct-Drive High Speed Roller Postbed Lock Stitcher (2-Needle))
Heavy-Duty Industrial Sewing Machine
Model : YH-674D-500
Driving motor directly.
Features :
* Increase Production capacity : Direct driving makes the lifting of needles easier, with low noise and vibration.
Easy in sewing and faster in production processes.
* Improve Quality : Servo motor equipped makes the stitching precise.
Needle strength of running through the leather also increase which makes the stitch even better.
* Reduce Cost : Low energy consumption by cutting down the waste during the transmission. Simply practical and economical.
* Needle gauge ( mm ) :2.0; 1.6; 2.4
* Applicable needle :DP x 5 #14 - 27
* Max. speed :2500 rpm

* Model :YH-674D-500
* No. of needle :2
* presser foot type Driven roller :(yes)
* feeding way :
- Needle :
- Low wheel :(yes)
* back tacking :
- Up driven roller :(yes)
- Auto :
* Thread trimming :

* Model :YH-674D-510
* No. of needle :2
* presser foot type Driven roller :(yes)
* feeding way :
- Needle :
- Low wheel :(yes)
* back tacking :
- Up driven roller :(yes)
- Auto :
* Thread trimming :(yes)

* Model :YH-674D-530P
* No. of needle :2
* presser foot type Driven roller :(yes)
* feeding way :
- Needle :
- Low wheel :(yes)
* back tacking :
- Up driven roller :(yes)
- Auto :(yes)
* Thread trimming :(yes)

* Model :YH-674D-531P
* No. of needle :2
* presser foot type Driven roller :(yes)
* feeding way :
- Needle :
- Low wheel :(yes)
* back tacking :
- Up driven roller :(yes)
- Auto :(yes)
* Thread trimming :(yes)

Available Options: Model: YH-674D-500 / YH-674D-510 / YH-674D-530P / YH-674D-531P
This product was added to our catalog on 2011-12-20.
