High Speed 1-Needle 2-Thread Bag Closing Heads with Auto-Lubrication System (For Plain Sew.)
High Speed 1-Needle 2-Thread Bag Closing Heads with Auto-Lubrication System (For Plain Sew.)

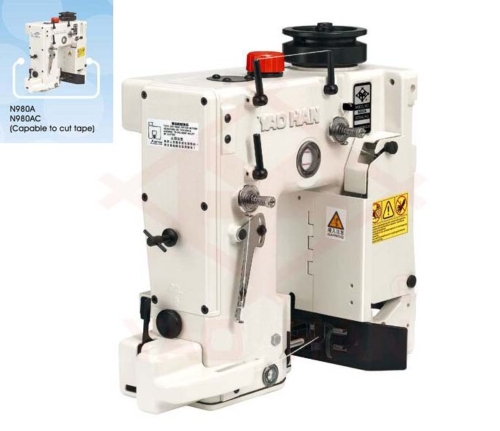

Model:N980A / N980AC (Capable to Cut Tape) Country of Origin:Taiwan

Detail Specifications / Descriptions

Products 1:
Various Of Bag Closing Machines (High Speed 1-Needle 2-Thread Bag Closing Heads With Auto-Lubrication System (For Plain Sew.))
Model : N980A
Features :
●Max. sewing speed 2700 r.p.m.
●well balanced rotating parts ensure very little vibration.
●Ideally suited for use high speed bag filling lines where conveyor speeds of 25 m / min.
●Interchangeable with most existing sewing heads.
●All parts are protected against the effects of dust.
●A unique but simple enclosed oil bath lubrication system greatly extends the life of moving parts and reduces maintenance costs.
●N980A is for general seam pocket machine, equipped with mechanically operated thread cutter.
●N980AC automatic sewing pocket machines and tape package seam with automatic pneumatic cutting and cutting with the device.
●For all kinds of filled bags.
Model: | N980A | N980AW | N980AP |
Speed (r.p.m.) : | 2700 | 2500 | 2700 |
Material thickness (Max.)(mm) : | 8 | 8 | 8 |
Stitch (MM) : | 7 - 11.5 | 7 - 11.5 | 7 - 11.5 |
Stitch type: | 1-needle 2-thread | 2-needle 4-thread | 1-needle 1-thread |
Closure type: | Mechanical thread cutter | Mechanical thread cutter | Mechanical thread cutter |
Cutter type: | Plain only | Plain only | Plain only |
Air pressure (kg/cm2) : | ---- | ---- | ---- |
Air consumption (N/min.) : | ---- | ---- | ---- |
N.W. (kg) : | 42 kg | 43 kg | 45 kg |
G.W. (kg) : | 44 kg | 45 kg | 47 kg |
notes :
Crepe-tape binder is not included as a standard supply.
Transmission ratio 1:1.35
V-Belt is not included as a standard supply.
Motor is not included as a standard supply.
***Avail able by special order.
This product was added to our catalog on 2012-04-16.

Products 2:
Various Of Bag Closing Machines (High Speed 1-Needle 2-Thread Bag Closing Heads With Auto-Lubrication System (For Plain Sew.))
Model : N980AC
Features :
●Max. sewing speed 2700 r.p.m.
●well balanced rotating parts ensure very little vibration.
●Ideally suited for use high speed bag filling lines where conveyor speeds of 25 m / min.
●Interchangeable with most existing sewing heads.
●All parts are protected against the effects of dust.
●A unique but simple enclosed oil bath lubrication system greatly extends the life of moving parts and reduces maintenance costs.
●N980A is for general seam pocket machine, equipped with mechanically operated thread cutter.
●N980AC automatic sewing pocket machines and tape package seam with automatic pneumatic cutting and cutting with the device.
●For all kinds of filled bags.
Model: | N980AC | N980ACW | N980ACP |
Speed (r.p.m.) : | 2700 | 2500 | 2700 |
Material thickness (Max.)(mm) : | 8 | 8 | 8 |
Stitch (MM) : | 7 - 10.5 | 7 - 10.5 | 7 - 10.5 |
Stitch type: | 1-needle 2-thread | 2-needle 4-thread | 1-needle 1-thread |
Closure type: | Pneumatic thread cutter / Tape cutter | Pneumatic thread cutter / Tape cutter | Pneumatic thread cutter / Tape cutter |
Cutter type: | Plain only, Plain/ Tape bound closing | Plain only, Plain/ Tape bound closing | Plain only, Plain/ Tape bound closing |
Air pressure (kg/cm2) : | 4 | 4 | 4 |
Air consumption (N/min.) : | 3.5 | 3.5 | 3.5 |
N.W. (kg) : | 43 kg | 44 kg | 45 kg |
G.W. (kg) : | 45 kg | 46 kg | 47 kg |
notes :
Crepe-tape binder is not included as a standard supply.
Transmission ratio 1:1.35
V-Belt is not included as a standard supply.
Motor is not included as a standard supply.
***Avail able by special order.
This product was added to our catalog on 2011-12-20.

Available Options: Model: | N980A | N980AW | N980AP | N980AC | N980ACW | N980ACP |
