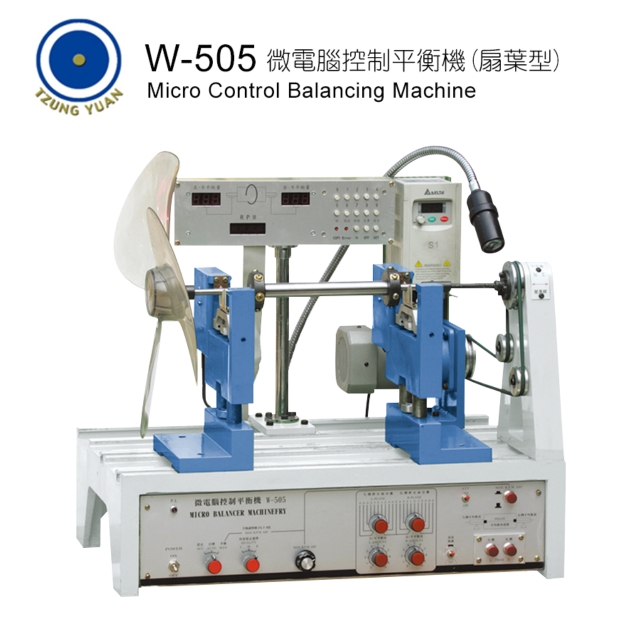

Micro Control Balancing Machine
Micro Control Balancing Machine

Model:W-505 Country of Origin:Taiwan

Detail Specifications / Descriptions

Good for:
Air dryer, squeezer, fans, vacuum cleaner,
motor driver, eggbeater and so on.

Features:
To adopt flashlight mode is easily to distinguish unbalanced degree.
Equipped computer memory system without adjustment RPM value in a long term.
The figure meter is the meanwhile shows the value of average deviation.
It can exactly show the RPM value of revised things.
To adopt I.C. keeps it in an available stability in a long period.

Model
W-505
Weight rang of workpiece
0.1 – 3 kg
Workpiece diameter
200 mm MAX
400 mm MAX
Journal diameter
20 mm MAX
Distance between bearings
300 mm MAX
Balancing Speed
600 - 2,000 RPM
Sensitivity 1μ
Drive motor 120w Frequency Speed
Dimension (L*W*H) 700 * 400 * 800 mm
Weight
70 kg
