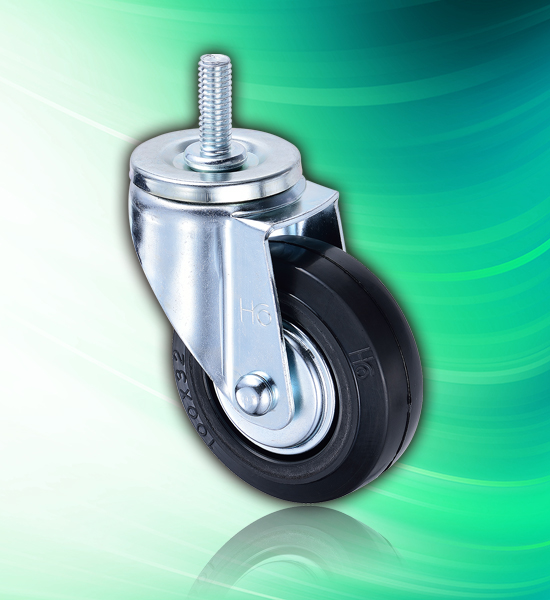

4 inch Rubber Screw Adjustable Scaffolding Wheel
Hot- Model:
- EB100SWT-HG
- Country of Origin:
- Taiwan
- Material:
- Elastic Rubber
Detail Specifications / Descriptions
Type: Swivel Caster(Threaded Stem)
Wheel Diameter x Width: 4x1¼ inch (100x32 mm)
Height: 131 mm
Load Capactiry: 200 kg
Stem Size: TΦ5/8 x 11
Stem Height: 35mm
Bearing: #6202 Double Ball Bearings
Fork Structure: Pressed Steel；Zinc Plated
Eccentricity: 32 mm
Wheel Core: Nylon Core
Weight: 0.9 kg
Others: Steel Wheel Cover
1. Wheel: Elastic Rubber Wheel, with the features of high elasticity, good load capacity and wear resistances.
2. Wheel Core: Nylon Core to increase the load capacity and the stability when moving.
3. Bearing: #6202 double ball bearings and sleeve bearings to improve the rolling and stability.
4. Fork: Swivel fork. Pressed steel and integrally formed. Zinc plated.
5. Steel wheel covers to prevent the dust, water and other materials.
6. Stem size: TΦ5/8 x 11 and TΦ1/2 x 12. Other requirement, please contact to our sales.
