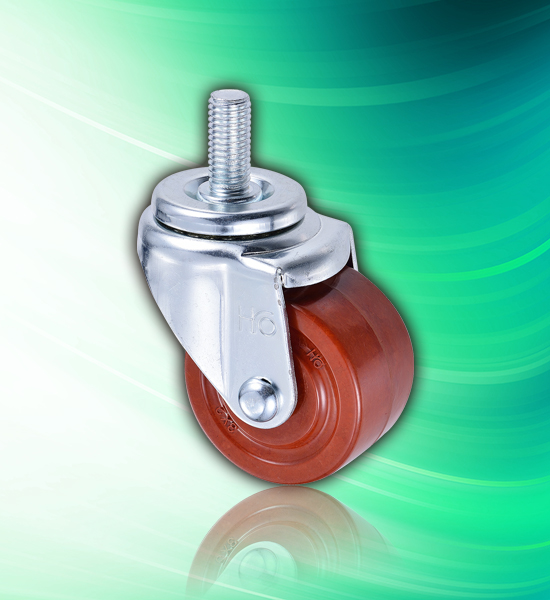

3 inch Bakelite Screw Hydraulic Heavy Duty Adjustable Casters
Hot- Model:
- T32SWT-PHR
- Country of Origin:
- Taiwan
- Material:
- Swivel Caster(Threaded Stem)
Detail Specifications / Descriptions
Type: Swivel Caster(Threaded Stem)
Wheel Diameter x Width: 3x2 inch (75x50 mm)
Height: 100 mm
Load Capactiry: 300 kg
Stem Size: TΦ5/8 x 11
Stem Height: 35mm
Bearing: Roller Bearing
Fork Structure: Pressed Steel；Zinc Plated
Eccentricity: 29 mm
Weight: 0.9 kg
1. Wheel: Phenolic wheel filled with fabric and it provides the features of superior floor protection, and resists hard impacts, most chemicals and steam.
2. High temperature resistance: -20~+220℃.
3. Bearing: Roller bearing to increase the load capacity.
4. Fork: Swivel fork. Pressed steel and integrally formed. Zinc plated.
5. Stem size: TΦ5/8 x 11 and TΦ1/2 x 12. Other requirement, please contact to our sales.
