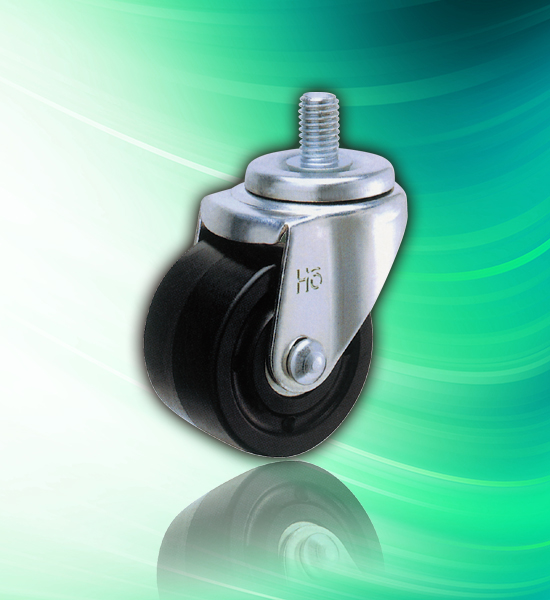

75mm Threaded Stem Swivel Caster with One Way Bearing
Hot- Model:
- A32SWT-NLR/ A32SWT-NLP
- Country of Origin:
- Taiwan
- Material:
- Nylon
Detail Specifications / Descriptions
Type: Swivel Caster(Threaded Stem)
Wheel Diameter x Width: 3x2 inch (75x50 mm)
Height: 100 mm
Load Capactiry: 250 kg
Stem Size: TΦ5/8 x 11
Stem Height: 35mm
Bearing: Roller Bearing/ #6201 Double Ball Bearings
Fork Structure: Pressed Steel；Zinc Plated
Eccentricity: 29 mm
Weight: 0.86 kg/ 0.82 kg
1. Wheel: High grade of nylon wheel, which is injection molding, with the features of wear, moisture, corrosion resistance and high load capacity.
2. Fork: Swivel fork. Pressed steel and integrally formed. Zinc plated.
3. Bearing: Roller bearing to increase the load capacity.
4. Bearing: #6201 double ball bearings to improve the rolling.
5. Stem size: TΦ5/8 x 11, TΦ1/2 x 12 and TΦM12 x 1.75. Other requirement, please contact to our sales.
