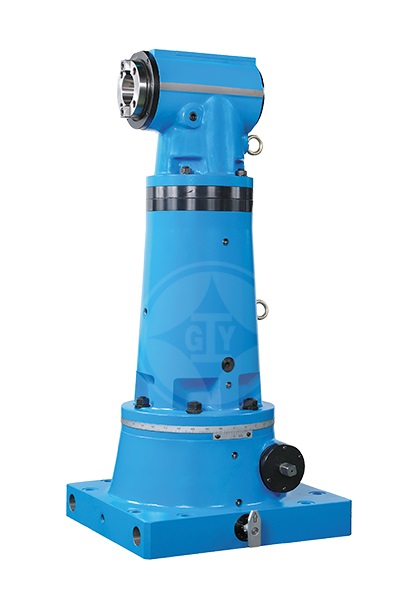

E77, N75 Power, High Precision Milling Head | For Double Column Milling Machine Application

E77, N75 Power, High Precision Milling Head | For Double Column Milling Machine Application

Model:
E77, N75
Country of Origin:
Taiwan

Detail Specifications / Descriptions

E77/N75 Precision Milling Heads, compact design for difficult-to-reach machining areas, support NT or BT tool holders with reliable performance.

Features
1. Could change machine to make vertical milling and cross milling.
2. Volume is small, convenient to operate, suitable to make complex of machine tools.
3. Spindle are made of chromium molybdic acid alloy steel, through quenching and precise grinding.
4. Cutter shank can use NT or BT (pull stud must be removed). Particular suitable cutter shank draw bar, can be attached which should be required when ordering.
5. The milling head can only tapping and screw socket process while reversing, can't cutting and drilling or other process, make machinery damaged.

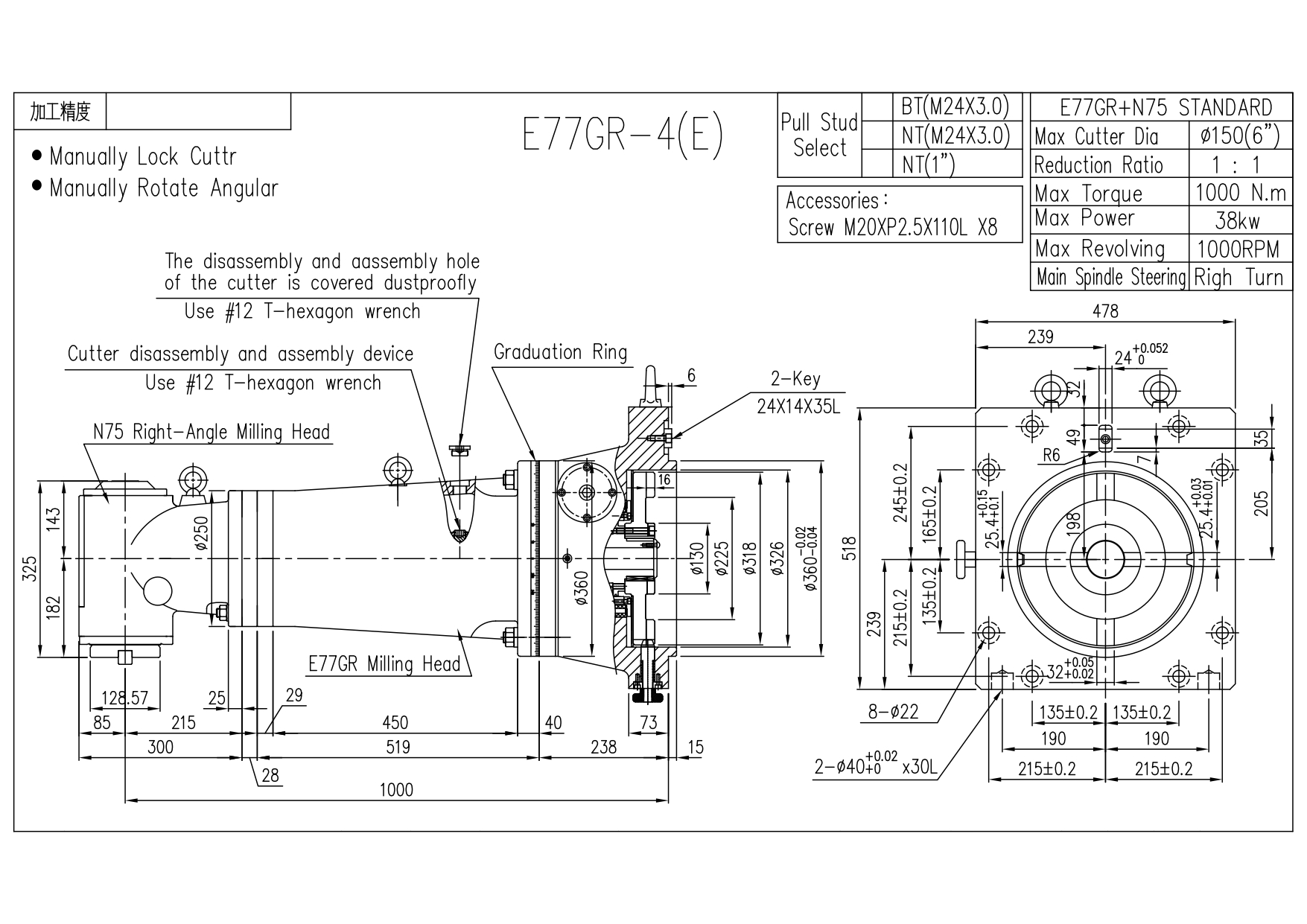

Specifications
TYPEMax Tool Dia.Reduction RatioMax TorqueMax HorsepowerMax Use SpeedSpindle SteeringAccessory
E77+N75ψ1501:138KW1000N.m1000rpm#50/ForwardM20×P2.5×110L-6Pieces


Application
