N76GR Power, High Precision Milling Head | Applicable Heavy Duty Double Column Milling Machine

N76GR Power, High Precision Milling Head | Applicable Heavy Duty Double Column Milling Machine

Model:
N76GR
Country of Origin:
Taiwan
Color:
Blue

Detail Specifications / Descriptions

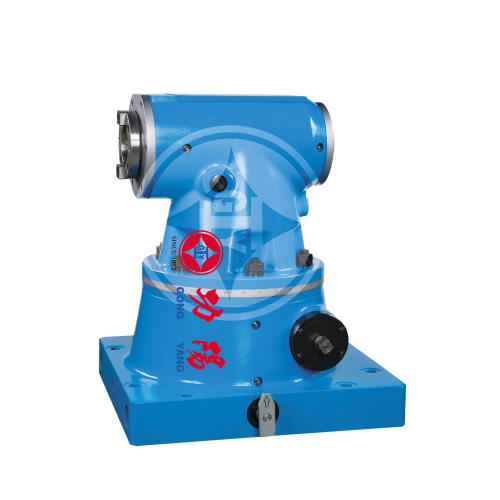

N76GR Power, High Precision Milling Head, compact high-precision design, ideal for heavy-duty double column and special machines.

Features
Applicable Machine Tools:Heavy Duty Double Column Milling Machine, Special Purpose Machine (Milling Head for Floor-Type Boring Machine)

Characteristics:
1. Could change machine to make vertical milling.
2. Fit a spiral bevel gear, the machine will be more precise and wear resistant.
3. To install a Graduated Ring which can be regulated 360° to choose the direction of the milling cutter.
4. There is graduated ring so we can choose the directions and adjust very easily.
5. Gear and spindle are made of chromium molybdic acid alloy steel, through quenching and precise grinding.
6. The bearing is spindle bearing, suitable for the light cut of high-speed.
7. Cutter shank can use NT or BT (pull stud must be removed). Particular suitable cutter shank draw bar, can be attached, should be required when ordering.

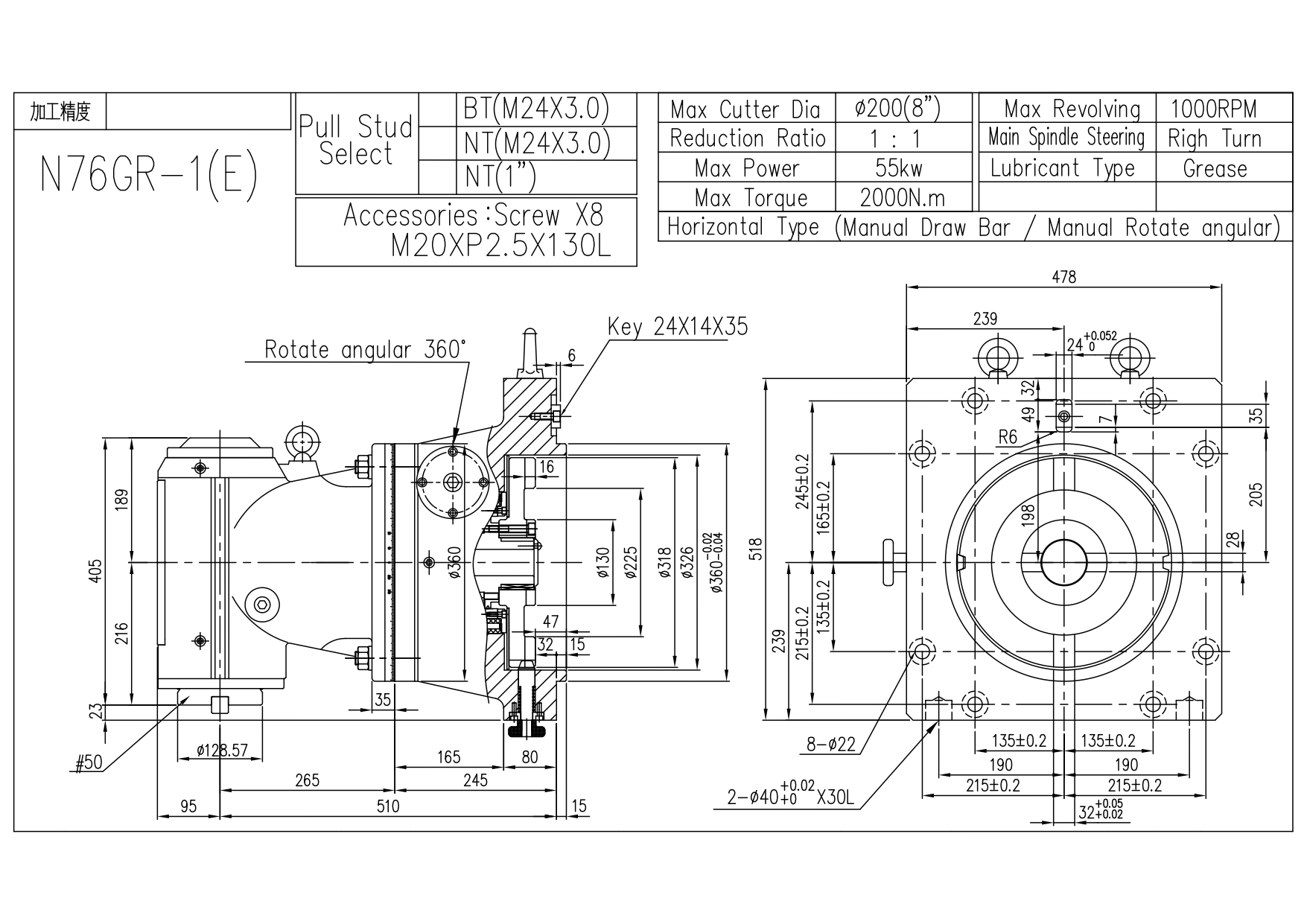

Specifications
TYPEMax Tool Dia.Reduction RatioMax TorqueMax HorsepowerMax Use SpeedSpindle SteeringAccessory
N76GRψ2001:155KW2000N.m1000rpm#50/ForwardM20×P2.5×130L-6Pieces


Application
