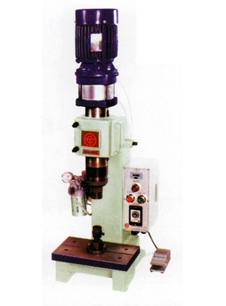

Pneumatic Riveting Machine

Pneumatic Riveting Machine

Model:
TC-141A

Detail Specifications / Descriptions

‧The main axis of the external pipe can be adjusted up and down. Easy operation and high accuracy.
‧It's higher and longer than the TC-141 type. It's specially suitable for the working of the longer manufactured products.
‧All types of voltage are available.
‧The longest solid rivet avaiable is 8mm.The suggested and most economically efficient is the rivet below 5.5mm.

Specifications:
‧Moter: 1/2HP
‧Stroke: 40mm
‧Riveting capacity: Solid rivet 1-7, Hollow rivet 1-15
‧Working cycle time (sec): 0.5~10
‧Ordinary pressure: 2-7
‧Max pressure: 230~800
‧ax. length rivet (mm): 280
‧Weigh (kg): 128
‧50/60HZ R.P.M: 1400/1720

Pneumatic Riveting Machine
