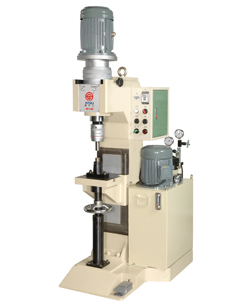

Hydraulic Riveting
Hydraulic Riveting

Model:TC-155 Country of Origin:Taiwan

Detail Specifications / Descriptions

‧Steel framed, lower center of gravity, strong steel flexibility, the three-phase type height adjusting device. It's specially suitable for the situation of greatly variable working time.
‧Plus a large cooling system, the temperature of the oil is hard to raise and the pressure is hard to be decreased during the long-time working.
‧The 2-speed designed collet will reduce the time of waiting and increase the production capacity.
‧Strong horse power, tight combination ability, the longest solid rivet is 25mm.

Specifications:
‧Moter: 3*3HP, 2*3HP
‧Stroke: 45mm
‧Riveting capacity: Solid rivet 1-25, Hollow rivet 1-40
‧Working cycle time (sec): 0.5~10
‧Ordinary pressure: 20-100
‧Max pressure: 1400~5500
‧ax. length rivet (mm): 300
‧Weigh (kg): 750
‧50/60HZ R.P.M: 1400/1720

Hydraulic Riveting
