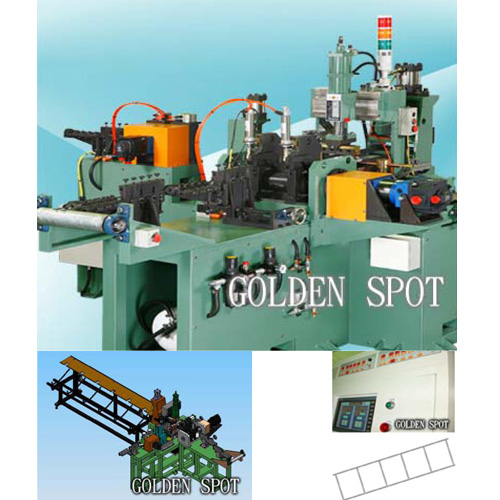

Ladder Type Welded Mesh Machine
Ladder Type Welded Mesh Machine

Model:SS-SH400

Detail Specifications / Descriptions

Line wire:
2 units of Pay-off (spool)→ Wire straightening device→ Advancing device (servo motor)

Cross wire:
1 unit of Pay-off (spool) → Wire straightening device→ Advancing device (servo motor)
2 units T-type welding device ( weld ) → End-product Shearing device → End-product Stacker

Wire guiding device: Detects the wires going through or not.
Wire straightening device: Straightening the wires.
Advancing device: Driven by servo motor, feeding progressively based on the programmed required pitch.
Cross wire Shearing device: Auto cutting the programmed pitch accordingly. (Hydraulic system).
Welding device: 2 units for the process of T-type welding.
End-product Shearing device: Auto cutting the preset length accordingly. (Hydraulic system.)
End-product Stacker: Deposits the end-products after cutting.

Electronic Control:
Equipped with man-machine interface windows based and PLC control, all the parameters and figures set on the screen, easy operating and maintenance.

Application :
Ladder-Mesh are continuous lengths of joint reinforcement that are embedded into the horizontal mortar joint of masonry walls
Availabe material:
Mild steel, Hot dipped Galvanized, Stainless Steel
