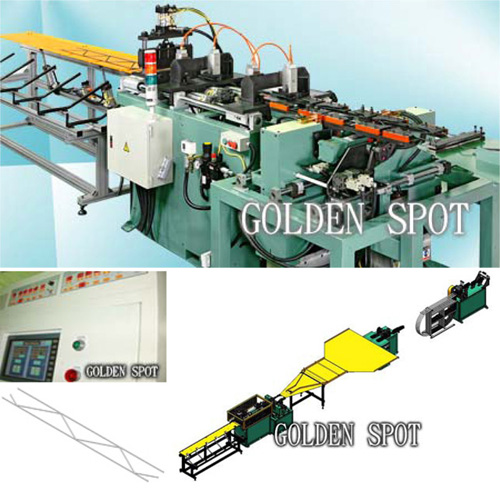

Truss Type Welded Mesh Machine
Truss Type Welded Mesh Machine

Model:SS-SW400

Detail Specifications / Descriptions

3 units Pay-off (Spool) → Wire straightening device→Feeding device (Motor) →Accumulator → Advancing device (servo motor) → one unit Truss type forming device→ Truss wire stacker → 2 units T-type welding device (weld) →End-product Pushing device →End-product Shearing device→End-product Stacker.
Wire guiding device: Detects the wires going through or not.
Wire straightening device: Straightening the wires.
Feeding Device: Feeding wires to the accumulator.
Accumulator: Accumulating the straightened wires.
Straightening device: Straightening again the wires.
Advancing Device: Driven by servo motor, advancing progressively based on the programmed required pitch.
Truss type forming device: Forming the wires into Truss type.
Welding device: 2 units for the process of T-type welding.
End-product Pushing device: Pushing progressively based on the required fixed pitch.
End-product Shearing device: Auto cutting the preset length accordingly. (Hydraulic system.)
End-product Stacker: Deposits the end-products after cutting.
Electronic Control:
Equipped with man-machine interface windows based and PLC control, all the parameters and figures set on the screen, easy.
