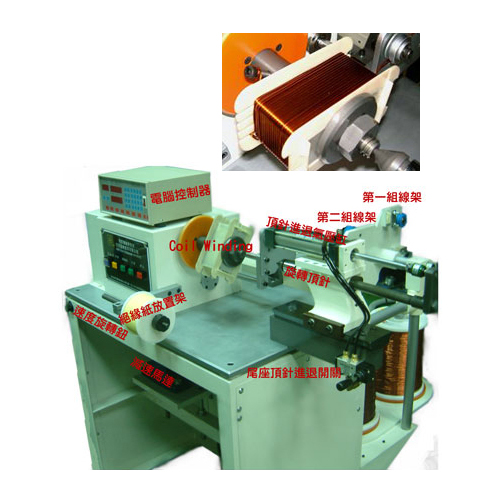

Conductor Wire Coil Winding Machine

Conductor Wire Coil Winding Machine

Model:

NC-300B

Detail Specifications / Descriptions
* This machine is designed for under 5KVA small transformer.
When it coil round and flat copper wire, it must be able to be neat in a row of line. It’s operated by single person as well.

* Special Note:
It uses NC system interface with multi-memory function.
It uses step motor and servo program.
Single coil or Double coils

* Specification: (Round conductor)
Copper wire 2 rolls
Copper wire size:φ0.50mm ~ φ3.2mm
Copper wire decoiler: 10 x 32 x 51cm
Copper wire carrying weight 60kgs
Main shaft speed: 0 ~ 90rpm
HousePower: 3Hp × 6
Machine Weight: 365kgs
Machine Size: 90 × 100 × 110 cm



Company:

MING SHENG ELECTRIC ENTERPRISE CO., LTD.
