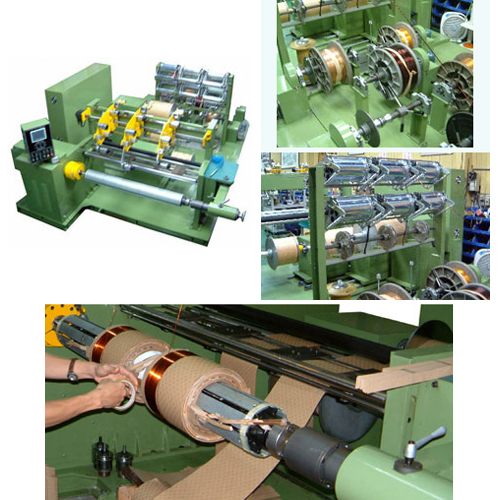

Coil Winding Machine

Coil Winding Machine

Model:
HV-1400W

Detail Specifications / Descriptions

* This machine is applicable for small and medium type (Mould) 161KV of transformer Copper wire winding, tidy of wire widning, one personnel can manipulate machine.
* Special Instruction:
Human Machine Interface, Multifunctional memory function.
Servo motor and drive
One or three conductings winding at the same time
Isolation paper tension control stable to increased efficiency and waste time.

* Specification:
Flat (round) type conducting 3-6 rolls
Flat type conducting specification 0.5t X 5mm~3.2t X 12mm
Round type conducting specification O0.5mm~O3.2mm
Flat wire uncoiler O40X∮610 X225mm
Wire wire uncoiler O100X∮315 X505mm
Flat wire carrying weight 200kgs
Round wire carrying weight 200kgs
Transformer coil width 400mm
Transformer coil radius 400mm
Insulation paper 3 rolls
Insulation paper thickness 0.38t ~ 1.4tmm
Insulation paper width 260mm ~ 650mm
Insulation paper I.D.O75mm ± 5mm
Insulation paper O.D.MAX O600mm
Insulation paper weight MAX60㎏
Main shaft coiling speed 0~200rpm
Transmission House Power 15Hpx6
