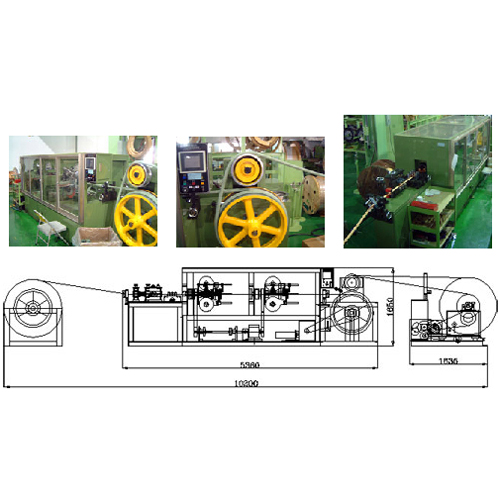

Fly-Fork Wrapping Paper Machine
- Model:
- CNC-12P
Detail Specifications / Descriptions
* This machine is makes bare flat line or single conductor of copper strand wire.
* Specification:
Wrapping paper layer: Max. 12 layer (6Px6P) Can winding the same way and different way.
Conductor Size: Thicknee 1.0~4.5mm (Not wrapping yet)
Paper Tape Size:
Material: 65°paper / 578 creased paper
Thickness: 0.05mm~0.08mm / 0.25mm
Width: 9 ~ 28mm / 25 ~ 50mm
O.D.MAX300mm / O.D.MAX300mm
I.D.60 mm / I.D.60 mm
Overlap way:
Gap (the same paper) 1.0~1.5mm (overlap) Between layer 1/2~1/3 overlap
Rotation rate: 50~500rpm Adjustment
Line Speed: MIN 10 M min ( 14mm W )
Feeding: Weight Max. 500 kgs /pc
