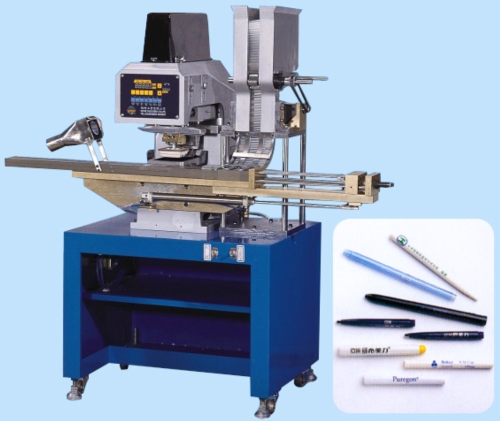

Auto Pen Sleeve Pad Printing Machine
Auto Pen Sleeve Pad Printing Machine

Model:WE-9105

Detail Specifications / Descriptions

* Color : 1
* Max Printing Plate : 80 x 200 (mm)
* Output / Hour : 3,600 ~ 4,500
* Dimension (L x W x H) : 1,000 x 1,000 x 1,550 (mm)
* Net WT : 160 kg

Features:

* With microprocessor controlled and auto "DEFAULT" system, easy to operate and maintenance.
* An advanced and unique four times "PAUSE" function for better printing quality has been designed to enable users who may stop or continue the operation, as wish, any time in process of printing.
* A durable and trouble free both Germany made "BOSCH" and Japan made "SMC" quality pneumatic components and bearing have been adopted and used on the machine.
* A detachable ink tray and adjustable Dr. blade are used on the machine of which these two separate unit can be adjusted respectively as per different applications, as wish, if required.
* Auto conveyor feeding system and auto positioning device, which the speed and position can be adjusted respectively to meet different requirements for a precision printing.
* 3 pieces auto arraying & feeding system design is able to print 3 pens at the same time.
* A durable material Aluminum Alloy is being used on feeding & conveying system of the machine.
* A hot air fan is mounted on the end of outfeeding system of the machine to speed up ink drying and to avoid any pollution.
* Custom-made machine is available and welcome.
