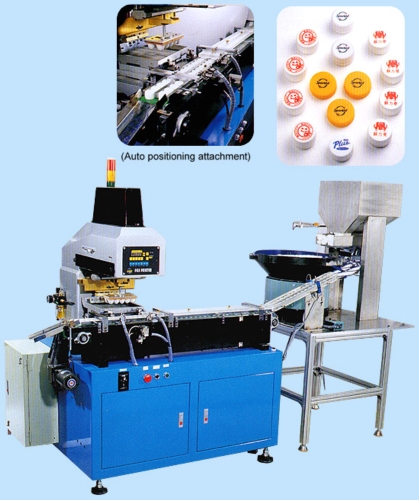

Auto Cap Pad Printing Machine
Auto Cap Pad Printing Machine

Model:WE-9106

Detail Specifications / Descriptions

* Color : 1
* Max Printing Plate : 140 x 200 (mm)
* Output / Hour : 10,000 ~ 12,000
* Dimension (L x W x H) : 4,000 x 1,000 x 1,500 (mm)
* Net WT : 400 kg

Features:

* With microprocessor controlled and auto "DEFAULT" system, easy to operate and maintenance.
* An advanced and unique four times "PAUSE" function for better printing quality has been designed to enable users who may stop or continue the operation, as wish, any time in process of printing.
* A durable and trouble free both Germany made "BOSCH" and Japan made "SMC" quality pneumatic components and bearing have been adopted and used on the machine.
* A detachable ink tray and adjustable Dr. blade are used on the machine of which these two separate unit can be adjusted respectively as per different applications, as wish, if required.
* High speed auto arraying and feeding system requires no operators to feed and array the caps manually for printing.
* Auto conveyor feeding system and auto positioning device, which the speed and position can be adjusted respectively to meet different requirements for a precision printing.
* Auto "DEFAULT" system gives the warning or stop the operation when no feeding occurs to minimize the poor printing effects when in process of printing.
* With small and slow outfeeding conveyor to enable ink complete dry.
* Custom-made machine is available and welcome.
