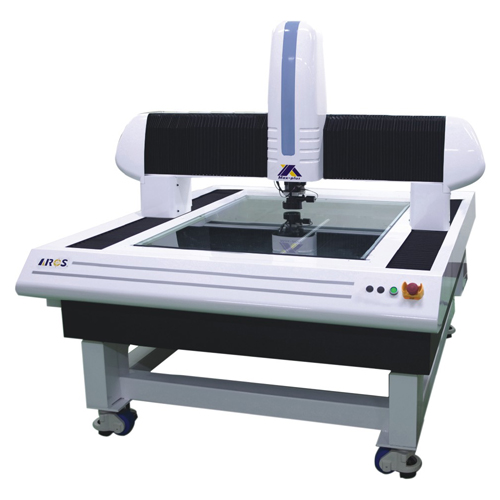

CNC Non-Contact Video Measuring System

CNC Non-Contact Video Measuring System

Model:
MAX-PLUS SERIES
Country of Origin:
Taiwan
Color:
Black &White

Detail Specifications / Descriptions

Technology Features of MAX-PLUS Series
* Video system: High Resolution & High Accuracy CCD / High Speed Video Capture Card
* Magnification: 0.7x~4.5x (17.5x~112.5x) Standard zoom lens
(Optional: Co-axial Lens)
Optional: 0.5x lens (For Standard Lens)
2x lens (For Standard or Co-axial Lens)
5x lens (For Co-axial Lens)
10x lens (For Co-axial Lens)
* Illumination: Adjustable surface and contour illumination
(High Brightness Ring Illumination)
(Optional: 26 channel Multi-Sections Illumination)
* Repeatability: 0.0035mm on X, Y-axis
* Length accuracy:
±(3.5+L/100)μm on X,Y-axis (Max-6272 and Max-6090)
±(5+L/100)μm on X,Y-axis (Max-90120 and Max-120150)
* Motor: X, Y, Z Servo Motor
* Motor operation: Mouse program (Optional: Joystick)
* Base: Precision granite table
* Power supply: 1~, AC200~230V, 50/60Hz
* Support software: SI-901
(Optional: SI-901A - Import Excellon File SI-901B - with Touch Probe Function)
* Linear scale: 0.0005mm on X, Y, Z -axis
