Linear Scale
- Model:
- LDOE TYPE
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions

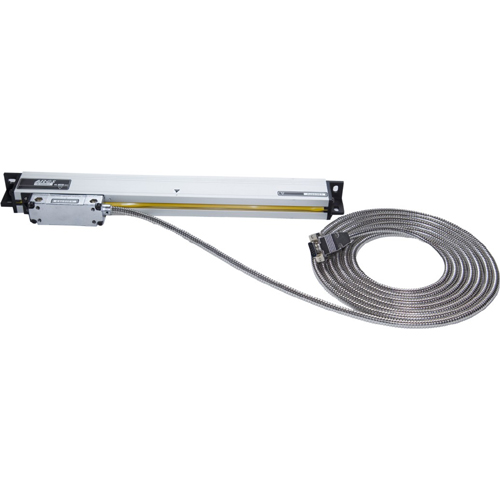

Standard type Linear Scale
* Resolution: 0.005mm(standard);0.001mm(optional)
* Measuring Length (ML): 50mm~3000mm
* Output signal: 5U, TLL (standard);RS422 (optional)
* Accuracy: ±(5+L/200)μm
* Max.Response Speed: 60M/min.(5U) ; 20M/min.(1U)
Features
* High accuracy optical glass linear scale
* Using 5 sets of bearing, to assure excellent repeatability positioning, good sliding and durability
* Special process of aluminum alloy for water / oil proof and anti-dust.
* Easy installation and maintenance.
