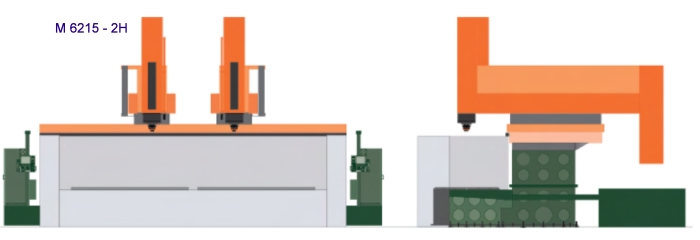

Sliding Double-column EDM (Ram type)
- Model:
- M6215-2H
Detail Specifications / Descriptions
‧The X. Y& Z axes utilize AC servo motors.
‧Multi-cavities machining, ORBIT-CUT machining & Helix machining.
‧A.T.C. (Automatic Tool change) & C-axis machining available.
‧The Circle Angle of Sparking is lower than 0.02mm.
‧Multi-cavities machining, ORBIT-CUT machining & Helix machining.
‧A.T.C. (Automatic Tool change) & C-axis machining available.
‧The Circle Angle of Sparking is lower than 0.02mm.
‧The best surface roughness (Ra) is better than 0.1 µm.
‧Multi-side ORBIT-CUT machining for X, Y & Z axis
‧High speed and long distance jumping.
‧Special rib shape machining function.
‧Multi-side ORBIT-CUT machining for X, Y & Z axis
‧High speed and long distance jumping.
‧Special rib shape machining function.
| Specification | M6215-2H |
|---|---|
| X,Y-travel | 單動 5000 x 1500 mm 雙動 2500 x 1500 mm |
| Z-travel | 1000 mm |
| Backslide travel | 6200 x 1600 mm |
| Vertical head travel | 6200 x 1600 mm |
| Table dimension | 6800x2000x800 mm |
| Maximum distance od table quill (Guide) | 630~1630 mm |
| Electrode pipe dimension | 300 kgs |
| Maximum workpiece dimension | 30000 kgs |
| Capacity | 24000 Liter |
| Machine weight | 12 pcs |
| Machine Height | 65000 kgs |
| Nominal Current | 90A/5A.120A/5A.150A/5A.180A/5A.240A/5A.300A/5A |
| lnput voltage | 220 / 380 / 415 / 440 V |
| Connected rating | 20KVA / 26KVA / 34KVA |
| Maximum stock removal rate | 600/800/1000/1200/1600/2000 mm3/min |
| Bst surface roughness | Ra≤0.1μm |
| Best electrode wearing rate | <0.2% (specific equip<0.1%) |
