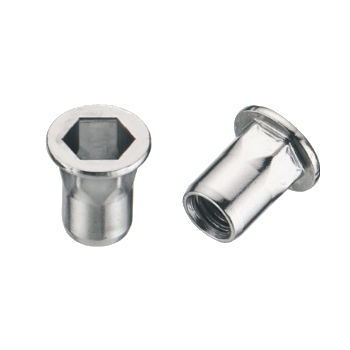

Semi-Hex Rivet Nuts
Semi-Hex Rivet Nuts

产品型号:HB 原产地:台湾 材质:Stainless Steel

详细规格及用途描述

Threaded Inserts Semi-Hexagonal,Flat Head,Open Type
Our company is a reliable manufacturer of Blind Rivet Nut and CNC Lathe in Taiwan.

PART NO.: SS.HB4
THREAD SIZE: M4x0.7
GRIP RANGE: 0.5-2.5
HOLE SIZE+0.1/-0: 6.00
A±0.3: 9.00
B max.: 5.97
C±0.3: 11.00
H±0.2: 0.80

PART NO.: SS.HB5
THREAD SIZE: M5x0.8
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 7.00
A±0.3: 10.00
B max.: 6.97
C±0.3: 13.0
H±0.2: 1.00

PART NO.: SS.HB6
THREAD SIZE: M6x1.0
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 9.00
A±0.3: 12.00
B max.: 8.97
C±0.3: 15.5
H±0.2: 1.50

PART NO.: SS.HB8
THREAD SIZE: M8x1.25
GRIP RANGE: 0.7-3.0
HOLE SIZE+0.1/-0: 11.00
A±0.3: 15.00
B max.: 10.97
C±0.3: 17.5
H±0.2: 1.50

PART NO.: SS.HB10
THREAD SIZE: M10x1.5
GRIP RANGE: 1.0-4.0
HOLE SIZE+0.1/-0: 13.00
A±0.3: 17.00
B max.: 12.97
C±0.3: 21.00
H±0.2: 2.00
